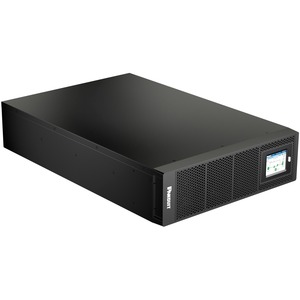

Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port

The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure.

Availability: Call or email

$8,078.76
$8,078.76

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Panduit SmartZone U10N11V 10000VA Rack/Tower/Rail UPS - 6U Rack/Tower/Rail - AVR - 6 Hour Recharge - 4.50 Minute Stand-by - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - 2 x NEMA L6-30R - Serial Port

OVERVIEW:

  • Limited Warranty : 3 Year
  • AVR : Yes
  • Load Capacity (VA) : 10000 VA
  • Product Color : Black
  • Serial Port : Yes
  • Status Indicators :

    Colorful LCD with cold start button and LED indicators

  • DC System Voltage : 240 V DC
  • Additional Warranty Information :
    • 3 Years for UPS & EBP
    • 2 Years for Battery
  • Load Capacity (Watt) : 10 kW
  • Form Factor : Rack/Tower/Rail
  • Alarm : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Number of Batteries : 20
  • Plug/Connector Type : Hard Wire 3-wire (2PH + G)
  • Rack Height : 6U
  • Energy Star : Yes
  • Battery Characteristics : Valve-regulated/Maintenance-free/Hot-swappable
  • Receptacle Type : NEMA L6-30R
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Height : 5.2"
  • Maximum Operating Elevation : 9842.52 ft
  • USB (HID Compliant) Port : Yes
  • Receptacle Detail : 2 x NEMA L6-30R
  • Input Voltage Range : 185 V AC - 264 V AC
  • Input Voltage Range : 110 V AC - 285 V AC
  • Width : 17.3"
  • EPO Port : Yes
  • Battery Size : 12V
  • Output Voltage : 240 V AC
  • Output Voltage : 208 V AC
  • Depth : 26.2"
  • Environmentally Friendly : Yes
  • Battery Capacity : 9000 mAh
  • Input Frequency : 70 Hz
  • Weight (Approximate) : 191.80 lb
  • Output Frequency : 60 Hz
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Sound Emission : 58 dB
  • Backup/Run Time (Full Load) : 4.50 Minute
  • Waveform Type : Pure Sine Wave
  • Backup/Run Time (Half Load) : 12.90 Minute
  • Transfer Time : 0 ns
  • Surge Energy Rating : 600 J
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 581.75 W
  • Overload Protection : Yes
  • Typical Battery Recharge Time : 6 Hour
  • Phase : Single Phase
  • Replaceable Battery : Yes
  • Application/Usage : Edge Computing
  • Application/Usage : Data Center
  • Application/Usage : IT Equipment
  • Application/Usage : Computer
  • Additional Info

    Additional Info

    SKU 02771U10N11V-BF
    Weight 191.8000
    Is Featured N/A
    Manufacturer PANDUIT CORP
    Manufacturer Part Number U10N11V
    Width 17.3"
    Length 1
    Height 5.2"
    Product ID 02771U10N11V
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
