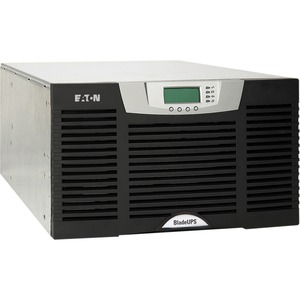

Eaton BladeUPS 12kW Rack-mountable UPS - 6U Rack-mountable - 4.70 Minute Stand-by - 400 V AC Input

Designed for the data centre - to ensure maximum uptime and maximum efficiency

Simply Scalable.

  • Eaton BladeUPS provides scalable double-conversion backup power
  • BladeUPS is designed for the data centre -to work in harmony with your servers and IT equipment to ensure maximum uptime and maximum efficiency
  • Scalable architecture enables you to design, scale and grow your data centre as your demand grows.
  • BladeUPS provides from 12kW to 60kW N+1 mounted in a single IT rack enclosure, with multiple power distribution options
  • BladeUPS delivers an industry-leading 98% efficiency across the operating range, resulting in cooler operating conditions and less heat dissipation
Very Flexible.
  • BladeUPS is extremely flexible and supports multiple configurations including power protection in each rack, centralised protection, zone protection or hybrid as required
  • If your needs change or need to move your IT equipment, simply redeploy and reuse BladeUPS as single of parallel units elsewhere
  • Multiple external batteries can be added to increase runtime
  • BladeUPS has multiple power distribution options including the Rack Power Module (RPM), ePDUs or hardwired. The 3U RPM delivers single-phase power and can be deployed in the same rack as the UPS and IT equipment.
Highly Efficient
  • Optimize your operational expenditure - Latest high efficiency technologies provide 98% efficiency, with 65% less heat dissipation to minimise your operational costs and reduce your carbon footprint
  • A 60kW N+1 solution could save over €20,000 in 5 years in energy costs alone
  • The small footprint of BladeUPS allows extra space for IT equipment in the rack and data centre.
  • Due to the low heat dissipation, air conditioning requirements are reduced by up to a third and BladeUPS can be located close to IT equipment.
  • Utilises Eaton's Advanced Battery Management system to prolong battery life by up to 50%
Simple to choose
  • Choose a pre configured solution, or configure yourself

Availability: Call or email

$11,044.19
$11,044.19
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton BladeUPS 12kW Rack-mountable UPS - 6U Rack-mountable - 4.70 Minute Stand-by - 400 V AC Input

OVERVIEW:

  • Status Indicators : Four Status At A Glance LEDs
  • DC System Voltage : 240 V DC
  • Form Factor : Rack-mountable
  • Alarm : Low Battery
  • Plug/Connector Type : Hard Wire 5-wire
  • Rack Height : 6U
  • Battery Characteristics : Sealed
  • Receptacle Type : Hard Wire 5-wire
  • Input Voltage : 400 V AC
  • Height : 10.3"
  • Battery Chemistry : Lead Acid
  • Input Voltage Range : 311 V AC - 519 V AC
  • Width : 17.4"
  • Depth : 26"
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Output Frequency : 60 Hz
  • Backup/Run Time (Full Load) : 4.70 Minute
  • Backup/Run Time (Half Load) : 13.50 Minute
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 371.03 W
  • Phase : Three Phase
  • Application/Usage : IT Equipment
  • Application/Usage : IPTV
  • Application/Usage : Storage Device
  • Application/Usage : Security
  • Application/Usage : VoIP
  • Application/Usage : PBX System
  • Application/Usage : Network
  • Application/Usage : Server
  • Application/Usage : Data Center
  • Additional Info

    Additional Info

    SKU 01731ZC121TB08100000-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number ZC121TB08100000
    Width 17.4"
    Length 1
    Height 10.3"
    Product ID 01731ZC121TB08100000
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
