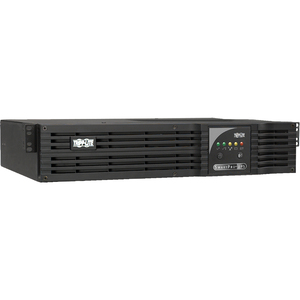

Tripp Lite by Eaton SMART2200RM2UN2 UPS System - 2U Tower, Rack-mountable - 4.50 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R Receptacle(s)

2200VA / 2.2kVA / 1920 watt line interactive UPS system with high power factor for server, network and telecommunications equipment. 2U rackmount or tower form factor with an installed depth of only 19 inches. Uninterruptible Power Supply (UPS) switches to battery-derived AC output during power failures and extreme voltage variations. Line interactive Automatic Voltage Regulation (AVR) offers two levels of voltage boost during brownouts and one level of voltage cut during overvoltages to maintain regulated 100, 110, 120v selectable output over an input range of 83-145V. Includes NEMA 5-20P input plug and both NEMA 5-15R and 5-15/20R output receptacles. Network-grade AC surge and noise suppression. Network management interfaces support simultaneous communications via USB, RS232 serial port and slot for included SNMPWEBCARD. HID-compliant USB interface enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X. Supports simultaneous detailed monitoring of equipment load levels, self-test data and utility power conditions via all 3 network interfaces. Includes PowerAlert monitoring software and complete cabling. Emergency Power Off (EPO) interface. Integrated 3-bank PDU switching supports load shedding and remote-reboot of connected equipment. 3-stage metered current monitoring and battery charge status LEDs. Utility power and voltage regulation LEDs. Audible alarm. Self-test. Rackmount accessories included. Field-replaceable, hot-swappable internal batteries. Attractive all-black color scheme.

Availability: Call or email

$1,345.60
$1,345.60

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Tripp Lite by Eaton SMART2200RM2UN2 UPS System - 2U Tower, Rack-mountable - 4.50 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 4 x NEMA 5-15R, 4 x NEMA 5-15/20R Receptacle(s)

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 2200 VA
  • Product Color : Black
  • Package Contents :
    • SMART2200RM2UN2 UPS System
    • UPSHDEARKIT Mounting Kit
    • SNMPWEBCARD Accessory
    • PowerAlert Software CD
    • USB Cable
    • Serial Cable
    • EPO Cable
  • Network Management : SNMP Manageable
  • Serial Port : Yes
  • Status Indicators :
    • Line Power Status
    • Battery Power Status
    • Overload Status
    • Voltage Regulation Status
    • Battery Low/Replace Status
  • Load Capacity (Watt) : 1920 W
  • Height : 3.5"
  • Software Included : PowerAlert
  • USB : Yes
  • Plug/Connector Type : NEMA 5-20P
  • Width : 17.5"
  • Alarm : Overload
  • Alarm : Low Battery
  • Alarm : Power Failure
  • Receptacle Type : NEMA 5-15/20R
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 19"
  • Receptacle Detail : 4 x NEMA 5-15/20R
  • Receptacle Detail : 4 x NEMA 5-15R
  • Input Current : 16.70 A
  • Rack Height : 2U
  • Output Voltage : 120 V AC
  • Form Factor : Rack-mountable
  • Form Factor : Tower
  • Environmentally Friendly : Yes
  • Weight (Approximate) : 64 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 5 Minute
  • Backup/Run Time (Half Load) : 13 Minute
  • Waveform Type : Pure Sine Wave
  • Waveform Type : Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 177.01 W
  • Cord Length : 9.84 ft
  • Surge Energy Rating : 570 J
  • Circuit Breaker : Yes
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4.50 Hour
