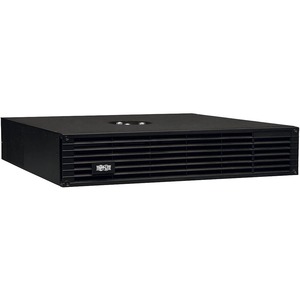

Eaton Tripp Lite Series SmartOnline Step-Down Isolation Transformer, 208/240V to 120V, 6kVA, 6kW, 2U Rack-Mount, TAA - 6000 VA - 230 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2U - TAA Compliant

208V to 120V Isolation Transformer Converts High-Voltage Input to Low-Voltage Output

The 6kVA 6kW SU6000XFMR2UTAA SmartOnline® Step-Down Isolation Transformer converts your UPS, utility or generator's 208V or 240V high-voltage input to 120V low-voltage output. Set the input voltage using the front-panel switch. The transformer features eight NEMA 5-15/20R and four NEMA 5-15R outlets for connecting equipment with common NEMA 5-15P and NEMA 5-20P plugs. Resettable circuit breakers protect your low-voltage equipment against overload conditions. One NEMA L6-30R outlet supports high-voltage output.

Supports Plug or Hardwire Input

The transformer's four-foot power cord with 208/240V 24A input connects to a NEMA L6-30R outlet. You can also use the hardwire terminals to connect the transformer module to the power module's input and output terminal blocks.

Versatile Installation Options

Hardware is included for mounting the 208V to 120V isolation transformer transformer in 2U of space in an EIA-standard 19-inch 4-post rack with a maximum depth requirement of 27.25 inches. Use the optional 2POSTRMKITWM for 2-post rack mounting or the optional 2-9USTAND for mounting in an upright tower position (both accessories sold separately).

TAA-Compliant UPS for GSA Schedule Purchases

The SU6000XFMR2UTAA is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

2-Year Warranty and Environmentally Responsible Design

The SU6000XFMR2UTAA comes with a 2-year warranty. It's manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite's commitment to environmental responsibility.

Availability: Call or email

$2,381.18
$2,381.18

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series SmartOnline Step-Down Isolation Transformer, 208/240V to 120V, 6kVA, 6kW, 2U Rack-Mount, TAA - 6000 VA - 230 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2U - TAA Compliant

OVERVIEW:

  • Limited Warranty : 2 Year
  • Input Voltage : 230 V AC
  • Package Contents :
    • SmartOnline SU6000XFMR2UTAA Isolation/Step-Down Transformer
    • Rack-mounting Hardware
    • Owner's Manual
  • Power Rating : 6000 VA
  • Height : 3.5"
  • Input Receptacle Type : Hardwired
  • Output Voltage : 240 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 120 V AC
  • Width : 17.5"
  • Country of Origin : Taiwan
  • Output Receptacle Type : NEMA 5-15/20R
  • Output Receptacle Type : NEMA 5-15R
  • Output Receptacle Type : NEMA L6-30R
  • Depth : 21.8"
  • TAA Compliant : Yes
  • Form Factor : Tower/Rack Mountable
  • Environmentally Friendly : Yes
  • Maximum Line Current : 30 A
  • Rack Height : 2U
  • Weight (Approximate) : 72.60 lb
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 01731SU6000XFMR2UTAA-BF
    Weight 72.6000
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number SU6000XFMR2UTAA
    Width 17.5"
    Length 1
    Height 3.5"
    Product ID 01731SU6000XFMR2UTAA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
