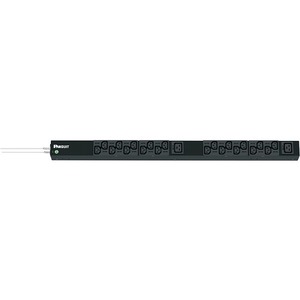

Panduit P22B10M Vertical Basic Power Distribution Unit - Basic - NEMA L6-20P - 20 x IEC 60320 C13, 2 x IEC 60320 C19 - 208 V AC - 0U - Vertical - Rack-mountable

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).

These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.

Availability: Call or email

$252.08
$252.08

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Panduit P22B10M Vertical Basic Power Distribution Unit - Basic - NEMA L6-20P - 20 x IEC 60320 C13, 2 x IEC 60320 C19 - 208 V AC - 0U - Vertical - Rack-mountable

OVERVIEW:

  • Limited Warranty : 3 Year
  • PDU Type : Basic
  • Input Voltage : 208 V AC
  • Mounting Orientation : Vertical
  • Remote Outlet Switching : No
  • Phase : Single Phase
  • Output Voltage : 208 V AC
  • Mount Type : Rack-mountable
  • Plug/Connector Type : NEMA L6-20P
  • Output Voltage Range : 120 V AC - 240 V AC
  • Country of Origin : United States
  • Receptacle Type : IEC 60320 C19
  • Receptacle Type : IEC 60320 C13
  • Power Rating (VA) : 3300 VA
  • Rack Height : 0U
  • Environmentally Friendly : Yes
  • Receptacle Detail : 2 x IEC 60320 C19
  • Receptacle Detail : 20 x IEC 60320 C13
  • Input Current : 20 A
  • Height : 32.2"
  • Width : 2"
  • Depth : 2.1"
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 02771P22B10M-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer PANDUIT CORP
    Manufacturer Part Number P22B10M
    Width 2"
    Length 1
    Height 32.2"
    Product ID 02771P22B10M
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
