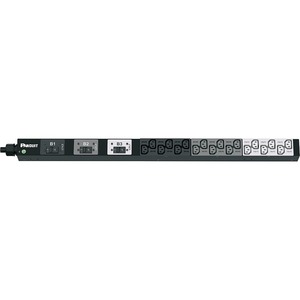

Panduit P18B21M Vertical Basic Power Distribution Unit - Basic - NEMA L15-30P - 18 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable

Panduit Basic Rack PDUs provide reliable and cost effective power distribution in a variety of inputs (Single or Three Phase; Delta or WYE) and outlet configurations (IEC C13, C19, or NEMA compliant).

These Rack PDUs have some of the highest outlet densities and the smallest form factors available in the marketplace. They feature up to 48 outlets and come standard with a 10-foot (3 meter) input power cord. They are capable of mounting vertically (0U) or horizontally (1U or 2U) in a data center/enterprise cabinet or rack using standard mounting buttons or included hardware.

Availability: Call or email

$401.14
$401.14

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Panduit P18B21M Vertical Basic Power Distribution Unit - Basic - NEMA L15-30P - 18 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack-mountable

OVERVIEW:

  • Limited Warranty : 3 Year
  • PDU Type : Basic
  • Input Voltage : 230 V AC
  • Mounting Orientation : Vertical
  • Remote Outlet Switching : No
  • Phase : Three Phase
  • Output Voltage : 208 V AC
  • Mount Type : Rack-mountable
  • Plug/Connector Type : NEMA L15-30P
  • Output Voltage Range : 120 V AC - 240 V AC
  • Receptacle Type : IEC 60320 C13
  • Power Rating (VA) : 8600 VA
  • Rack Height : 0U
  • Environmentally Friendly : Yes
  • Receptacle Detail : 18 x IEC 60320 C13
  • Input Current : 30 A
  • Height : 32.2"
  • Protection Type : Double Pole
  • Width : 2"
  • Depth : 2.1"
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 02771P18B21M-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer PANDUIT CORP
    Manufacturer Part Number P18B21M
    Width 2"
    Length 1
    Height 32.2"
    Product ID 02771P18B21M
    UNSPSC N/A
    Other Part Number N/A
