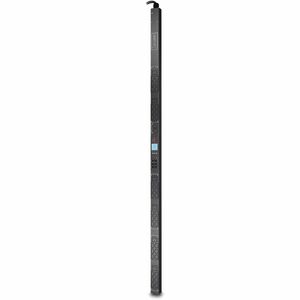

APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU - Metered - NEMA L21-20P - 208 V - 6 ft Cord Length - 0U - Rack-mountable

The APC Metered Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The AP8861 offers real-time remote monitoring of connected loads and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment The 0U PDU includes a NEMA L21-20P input plug with 1 83m (6ft) cord, (2) NEMA 5-20R, (36) IEC 60320 C13 and (6) IEC 60320 C19 output receptacles The PDU can operate in a maximum ambient air temperature of up to 60°C (140°F) at full load The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxureTM IT through a Network Management Card and can be accessed and configured via Web, SNMP, and Command Line Interface User-interactive LCD interface details current, real power, voltage, and energy measurements for local user access Embedded log memory with historical reporting enables users to meter power usage, optimize energy usage, and plan for capacity The PDU's locking IEC outlets, when used with locking power cords reduce the probability of accidentally disconnecting cords and dropping loads The rack PDU supports daisy-chaining of up to 4 PDUs on a single IP address An environmental monitoring port is available for external temperature/humidity monitoring (sensor sold separately, model AP9335T or AP9335TH) The rack PDU comes with a standard two-year warranty

More from the Manufacturer

Availability: Call or email

Regular Price: $848.90

Special Price $797.97

Regular Price: $848.90

Special Price $797.97

Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

APC by Schneider Electric Metered Rack AP8861 44-Outlets 5.7kW PDU - Metered - NEMA L21-20P - 208 V - 6 ft Cord Length - 0U - Rack-mountable

OVERVIEW:

  • Limited Warranty : 2 Year
  • PDU Type : Metered
  • Input Voltage : 208 V
  • Package Contents :
  • Metered Rack AP8861 44-Outlets 5.7kW PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable
  • Management :

    Protocols:

    • SNMP
    • Telnet
  • Additional Warranty Information : 2 years repair or replace
  • Output Voltage : 208 V AC
  • Output Voltage : 120 V AC
  • Mount Type : Rack-mountable
  • Plug/Connector Type : NEMA L21-20P
  • Rack Height : 0U
  • Environmentally Friendly : Yes
  • Cord Length : 6 ft
  • Height : 70.5"
  • Width : 2.2"
  • Depth : 1.7"
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 13.98 lb
  • Additional Info

    Additional Info

    SKU 01133AP8861-BF
    Weight 13.9800
    Is Featured N/A
    Manufacturer Schneider Electric SA
    Manufacturer Part Number AP8861
    Width 2.2"
    Length 1
    Height 70.5"
    Product ID 01133AP8861
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
