Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm) - Functions: Audio Embedding, Audio Extraction - USB - Audio Line Out - External

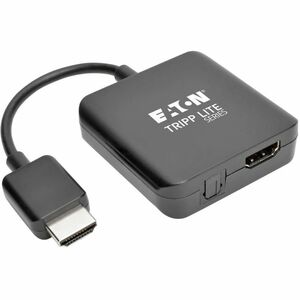

The low-profile P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor is recommended for connecting an HDMI source, such as a Blu-ray™ player or desktop computer, to audio speakers that don't have an HDMI input. It separates the audio track from the HDMI signal and sends it directly to an alternate digital or analog system. It features 3.5 mm stereo and TOSLINK digital optical audio outputs to match most non-HDMI receivers and audio systems.

The P130-06N-AUDIO supports two-channel stereo and multi-channel audio up to 5.1 surround sound. It also supports uncompressed audio, such as LPCM, and compressed audio formats, including DTS® and Dolby Digital®. An LED indicates when the unit is receiving power, transmitting an audio/video signal or transmitting 5.1-channel surround sound.

On the video side, the HDCP 1.4-compliant P130-06N-AUDIO transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) at 30 Hz. It supports 24-bit True Color (8 bits per channel) at 4K x 2K, 36-bit Deep Color (12 bits per channel) at 1080p, and optional 3D formats up to 300 MHz.

Connect the included USB Micro-B cable between the P130-06N-AUDIO and a USB port on the HDMI source or a USB charger to power the unit.

Features

Extracts Audio from an HDMI Signal and Sends It to a Separate Audio System

  • Recommended for connecting HDMI source to speakers that don't have HDMI input
  • 3.5 mm stereo and TOSLINK optical outputs connect to analog or digital non-HDMI audio equipment
  • LED indicates the unit is receiving power or transmitting an audio/video signal
  • Built-in 6 in. HDMI cable connects to audio/video source
  • Included 3 ft. USB Micro-B cable provides power to the unit


Versatile Audio Options

  • Supports 2-channel stereo and multi-channel audio up to 5.1 surround sound
  • Supports uncompressed, such as LPCM, and compressed audio, including DTS and Dolby Digital

Vibrant UHD Video

  • Transmits UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz
  • Supports 24-bit True Color (8 bits per channel) at 4K x 2K
  • Supports 36-bit Deep Color (12 bits per channel) at 1080p
  • Supports optional 3D formats up to 300 MHz
  • Complies with HDCP 1.4 standards

More from the Manufacturer

Availability: Call or email

$97.53
$97.53
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Eaton Tripp Lite Series 4K HDMI Audio De-Embedder/Extractor with TOSLINK and 3.5 mm Stereo Output, 5.1 Channel, HDCP, 4K 30Hz, 6-in. (15.24 cm) - Functions: Audio Embedding, Audio Extraction - USB - Audio Line Out - External

OVERVIEW:

  • Limited Warranty : 2 Year
  • Functions : Audio Extraction
  • Functions : Audio Embedding
  • Package Contents :
    • P130-06N-AUDIO UHD 4K x 2K HDMI Audio De-Embedder/Extractor
    • USB Micro-B Cable, 0.5 ft.
    • Owner's Manual
  • Form Factor : External
  • USB : Yes
  • Country of Origin : NA
  • Environmentally Friendly : Yes
  • HDMI : Yes
  • Audio Line Out : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 01731P13006NAUDIO-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number P130-06N-AUDIO
    Width 1
    Length 1
    Height 1
    Product ID 01731P13006NAUDIO
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
