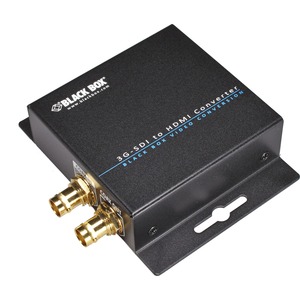

Black Box 3G-SDI/HD-SDI to HDMI Converter - Functions: Video Conversion - 1920 x 1080 - SDI - Wall Mountable - TAA Compliant

Essential for any professional video and broadcast engineering application, this handy converter enables you to connect a 3G-SDI, HD-SDI, or SD-SDI source for output on an HDMI display. This way, you can repurpose an ordinary LCD for video monitoring in your SDI setup.

The affordably priced device provides digitally pure SDI-to-HDMI conversion, ensuring no loss in the conversion for both video and audio signaling.

Use it in a TV studio, post-production, digital cinema, or AV application where you need to show uncompressed digital video from professional video equipment on a consumer-grade HDTV.

Even better, it features SDI loop-out via a second coax connector. This way you can display a 3G-SDI signal from a camera on an HDMI panel while simultaneously outputting the 3G-SDI signal to a second SDI device for local monitoring. Or use the loop-out to daisy-chain to additional SDI equipment.

The 3G-SDI/HD-SDI to HDMI Converter processes up to eight channels of audio, including 7.1-channel or 5.1-channel audio in addition to HDMI video. If your SDI source device supplies multiple channels of surround sound or Dolby® TrueHD audio, for example, the converter outputs the same number of channels for the HDMI connector's pinning.

For both older and newer SDI interfaces, the converter processes bit rates from 270 Mbps up to 2.97 Gbps.

Cable equalization helps compensate for loss when connecting the converter to an SDI source at maximum standard distances*.

Availability: Call or email

$259.84
$259.84
Black Box Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Black Box 3G-SDI/HD-SDI to HDMI Converter - Functions: Video Conversion - 1920 x 1080 - SDI - Wall Mountable - TAA Compliant

OVERVIEW:

  • Limited Warranty : 3 Year
  • Functions : Video Conversion
  • Package Contents :
    • 3G-SDI/HD-SDI to HDMI Converter
    • AC Power Adapter
    • Wallmount Ears
    • Screws
    • User Manual
  • Form Factor : Wall Mountable
  • Maximum Resolution : 1920 x 1080
  • Height : 1.2"
  • Country of Origin : Taiwan
  • Width : 3.1"
  • TAA Compliant : Yes
  • Depth : 3.3"
  • Environmentally Friendly : Yes
  • HDMI : Yes
  • Weight (Approximate) : 3.70 lb
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • SDI : Yes
  • Number of SDI Inputs : 1
  • Number of SDI Outputs : 1
  • Additional Info

    Additional Info

    SKU 01312VSCSDIHDMI-BF
    Weight 3.7000
    Is Featured N/A
    Manufacturer Black Box Corporation
    Manufacturer Part Number VSC-SDI-HDMI
    Width 3.1"
    Length 1
    Height 1.2"
    Product ID 01312VSCSDIHDMI
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
