AMX 4K60 Scaler - Functions: Video Scaling - 4096 x 2160 - USB - External

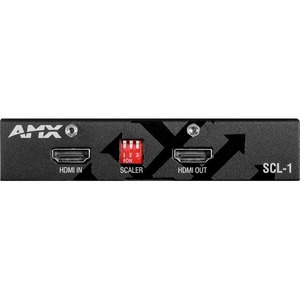

The AMX SCL-1 4K60 Scaler is a small-format scaler that adjusts the output to match the optimal resolution of the display. The scaler includes a single input and a single output, with a size small enough to be mounted behind a display. It was designed to be used in combination with products such as the local HDMI outputs on the AMX Precis 8x8 that do not have built-in scaling. This offers a more flexible, lower cost solution for installations where scaling is needed only on certain outputs.

The scaler is compatible with 4K60 4:4:4 resolutions and HDCP 2.2, offering support for the latest source devices and displays. Because the scaler includes automatic scaling, the device can be configured to automatically scale to the optimal resolution of the display based on its EDID. It can be set to always scale to a particular resolution.

Common Applications
Ideal for a variety of applications where there is no video scaling built into the switcher.

Features

  • 4K60 4:4:4 and HDCP 2.2 Support - Both 4K60 and non-4K content is supported
  • Single Input/Output - Can be used in combination with products such as presentation switchers which do not have resolution support to match displays.
  • Automatic Scaling Option - Can be configured to automatically scale to the optimal resolution of the display based on its EDID, or it can be set to always scale to a particular resolution

Availability: Call or email

$460.54
$460.54

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

AMX 4K60 Scaler - Functions: Video Scaling - 4096 x 2160 - USB - External

OVERVIEW:

  • Functions : Video Scaling
  • Package Contents :
    • 4K60 Scaler
    • 1 x 3P-3.5MM Phoenix Connectors
    • 1 x 12V/2A Power Adapter
    • 1 x US Exchangeable Adapters
    • 1 x EU Exchangeable Adapters
    • 1 x UK Exchangeable Adapters
    • 2 x Mounting Ear
    • 4 x M2.5 Screw (For Mounting Ears)
  • Form Factor : External
  • USB : Yes
  • Maximum Resolution : 4096 x 2160
  • Height : 1"
  • Country of Origin : Mexico
  • Width : 4.3"
  • Depth : 5.9"
  • Environmentally Friendly : Yes
  • HDMI : Yes
  • Weight (Approximate) : 1.10 lb
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 05080FG1015100-BF
    Weight 1.1000
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number FG1015-100
    Width 4.3"
    Length 1
    Height 1"
    Product ID 05080FG1015100
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
