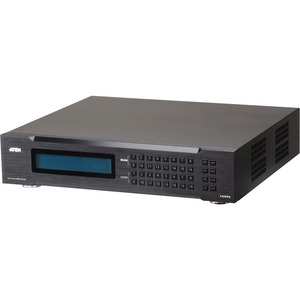

ATEN 16 x 16 HDMI Matrix Switch with Scaler - 1920 x 1080 - Full HD - Twisted Pair - 16 x 16 - Display, TV, Speaker - 17 x HDMI Out

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.

The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.

The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.

Availability: Call or email

$11,721.08
$11,721.08

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ATEN 16 x 16 HDMI Matrix Switch with Scaler - 1920 x 1080 - Full HD - Twisted Pair - 16 x 16 - Display, TV, Speaker - 17 x HDMI Out

OVERVIEW:

  • Limited Warranty : 3 Year
  • Graphics Modes : Full HD
  • Connectivity Technology : Cable
  • Form Factor : Rack-mountable
  • Package Contents :
    • 16 x 16 HDMI Matrix Switch with Scaler
    • 1 x Power Cord
    • 1 x Rack Mounting Kit
    • 1 x User Instructions
  • Media Type Supported : Twisted Pair
  • Maximum Video Resolution : 1920 x 1080
  • Number of Input Devices Supported : 16
  • Height : 3.5"
  • Maximum Operating Distance : 49.21 ft
  • Device Supported : Speaker
  • Device Supported : TV
  • Device Supported : Display
  • Width : 17"
  • Environmentally Friendly : Yes
  • Number of Displays Supported : 16
  • Depth : 15"
  • Weight (Approximate) : 17.33 lb
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • HDMI In : Yes
  • Country of Origin : Taiwan
  • HDMI Out : Yes
  • Connectivity (RJ-45) : Yes
  • Number of Connectivity (RJ-45) Ports : 1
  • Number of HDMI Inputs : 16
  • Number of HDMI Outputs : 17
  • Additional Info

    Additional Info

    SKU 01205VM51616H-BF
    Weight 17.3300
    Is Featured N/A
    Manufacturer ATEN Technology, Inc
    Manufacturer Part Number VM51616H
    Width 17"
    Length 1
    Height 3.5"
    Product ID 01205VM51616H
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
