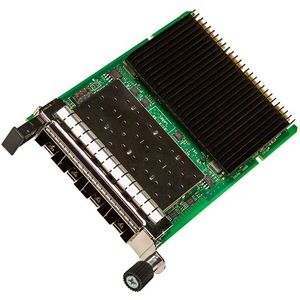

Intel Ethernet Network Adapter E810-XXVDA4 for OCP 3.0 - Increase port density and optimize workload performance

Intel® Ethernet 800 Series Network Adapters improve application efficiency and network performance with innovative and versatile capabilities. With four 25GbE SFP28 ports and key performance optimizations, the E810-XXVDA4 for OCP 3.0 supports solutions across Cloud, Enterprise, and Communications.

The OCP NIC 3.0 specification defines a standardized design for a new generation of network adapters. Simple and straightforward form factors, clear manageability requirements, and improved serviceability help simplify deployment for current and emerging capabilities.

Performance optimizations and port density for Cloud and Storage deployments

  • Four 25GbE SFP28 ports deliver multiple high- speed connections
  • Application Device Queues (ADQ) provides dedicated traffic queues to reduce latency and increase application throughput
  • Dynamic Device Personalization enables protocol- specific traffic acceleration to improve packet processing efficiency and reduce CPU overhead
  • iWARP and RoCEv2 support provides high-speed, low-latency, high-throughput connectivity for Cloud storage targets

Accelerated packet processing and PCIe slot savings for Communications workloads

  • Four 25GbE ports deliver greater bandwidth in slot-constrained RAN systems
  • Enhanced Data Plane Development Kit (DPDK)support increases packet processing speeds
  • Dynamic Device Personalization enables protocol- specific traffic acceleration and reduces CPU overhead for emerging high-bandwidth workloads
  • IEEE 1588 PTP v2 support enables precise clock synchronization across 5G

Flexible Configurations ?

Intel® Ethernet Optics, and specification-compliant Active Optical Cables and Direct Attach Cables, can support multiple configurations.

Availability: Call or email

$991.79
$991.79
Intel Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Intel Ethernet Network Adapter E810-XXVDA4 for OCP 3.0 - Increase port density and optimize workload performance

OVERVIEW:

  • Network Technology : 25GBase-LR
  • Network Technology : 25GBase-SR
  • Network Technology : 25GBase-CR
  • Media Type Supported : Optical Fiber
  • Host Interface : PCI Express 4.0 x16
  • Chipset Manufacturer : Intel
  • Device Supported : Server
  • Expansion Slot Type : SFP28
  • Total Number of Ports : 4
  • Chipset Model : E810-CAM1
  • Bracket Height : OCP
  • Maximum Data Transfer Rate : 200 Gbit/s
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 02160E810XXVDA4OCPV3-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Intel Corporation
    Manufacturer Part Number E810XXVDA4OCPV3
    Width 1
    Length 1
    Height 1
    Product ID 02160E810XXVDA4OCPV3
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
