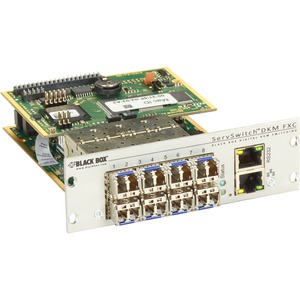

The 8-Port KVM Matrix switch module installs in ACXMODH2R-P-R2 The Matrix switch enables switching between computers and remote consoles. Each port on the Matrix is agnostic and can support a transmitter or receiver. DKM Matrix features instantaneous switching between sources using the same video resolution. Users can interact with this KVM switch via hotkeys, OSD, eternal Java Utility, or an API interface.
- The DKM Matrix switch enables switching between computers and remote consoles.
- The DKM Compact switch is available in CATx and Fiber and in port sizes of 8, 16, 32, 48, 64 and 80.
- The DKM 64 and 80 port switches offer hybrid interfaces that support both CATx and Fiber.
- CATx endpoints can be extended up to 400 feet (122 m) and Fiber endpoints can be extended up to 6.2 miles (10 km).
- Each port on the DKM is agnostic and can support a transmitter or receiver.
- The DKM features instantaneous switching between sources using the same video resolution.
- Users can interact with this KVM switch via hotkeys, OSD, eternal Java Utility, or an API interface.
- The DKM can easily be cascaded to support future expansion in the event that every port is in use.
- The DKM solution features transmitter and receiver endpoint options that can support DisplayPort, DVI-D, DVI-I, HDMI, VGA, USB HID, USB 2.0, Analog Audio, Digital Audio, RS232, and RS422.
- Black Box can also help you support legacy interfaces such as Component, Composite, S-Video, RGB Video, even with PS/2 keyboards and mice
- The DKM transmitters and receivers support CATx or Single-mode or Multi-mode Fiber which interfaces with the DKM FX KVM Switch
