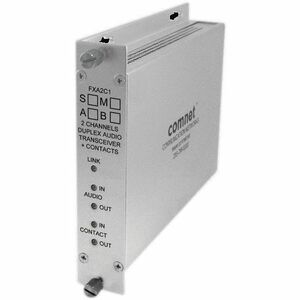

The ComNet™ FTA/FRA2C1 Series audio multiplexer provides the transmission of two audio signals and one contact closure over one multimode or single mode optical fiber. A bidirectional model, FXA2C1(M,S)1, is also available. The modules use 24-bit 96kHz sample rate digital encoding for superior transmission of balanced line-level audio. Plugand-play design ensures ease of installation and no electrical or optical adjustments are required. Bi-color LED indicators confirm operational status. Packaged in the exclusive ComNet ComFit housing, these units may be either wall or rack mounted.
- Two simplex or duplex audio channels
- One simplex or duplex contact closure
- 24-bit 96kHz digitally encoded transmission
- 20Hz - 20kHz audio bandwidth 600Ω audio input impedance
- No in-field electrical or optical adjustments required
- Transmits balanced line-level audio up to +8.5dBm
- Distances up to 48km (30mi) without repeaters
- Automatic resettable fuses on all power lines
- Bi-color LED status indicators confirm operating status
- Hot-swappable rack modules
- Interchangeable between stand-alone or rack mount use - ComFit
- Lifetime Warranty
APPLICATIONS
- Point-to-Point Audio Communication
- Push-to-Talk Applications
