ATEN True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Rack-mountable

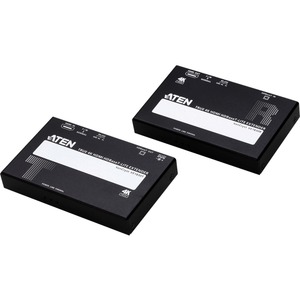

The VE1830 True 4K HDMI HDBaseT-Lite Extender provides great flexibility in professional A/V installation with its high-quality transmitter VE1830T and receiver VE1830R. Powered by HDBaseT™ technology, the VE1830 transmits True 4K HDMI signals up to 35m using a single Cat 5e/6 cable. ThisHDBaseT-Lite Extender supports HDCP 2.2 and meets the HDMI 2.0a specifications (3D, Deep Color, 4k) to ensure visually loseless high quality video and image. In addition, it features PoC (Power over Cable) which can power the receiver unit from the transmitter side with power supply. The VE1830 offers an easy-to-use and cost-effective solution for professional A/V installations that require superior HDMI video quality, such as in digital classrooms, video conference rooms and home theater.

Availability: Call or email

$395.00
$395.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

ATEN True 4K HDMI HDBaseT-Lite Extender (True 4K@35m) (HDBaseT Class B) New - 1 Input Device - 1 Output Device - 229.66 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 1 x HDMI Out - 4K UHD - 3840 x 2160 - Twisted Pair - Category 6 - Rack-mountable

OVERVIEW:

  • Graphics Modes : 4K UHD
  • Connectivity Technology : Wired
  • Package Contents :
    • 1 x VE1830T True 4K HDMI HDBaseT-Lite Transmitter
    • 1 x VE1830R True 4K HDMI HDBaseT-Lite Receiver
    • 2 x RS-232 Terminal Blocks
    • 1 x Power Adapter
    • 1 x Mounting Kit
    • 1 x User Instructions
  • Media Type Supported : Twisted Pair
  • Network (RJ-45) : Yes
  • Number of Input Devices Supported : 1
  • Twisted Pair Cable Standard : Category 6
  • Maximum Video Resolution : 3840 x 2160
  • Number of Output Devices Supported : 1
  • Transmitter Height : 0.66"
  • Maximum Operating Distance : 229.66 ft
  • Transmitter Width : 2.83"
  • HDMI In : Yes
  • Transmitter Depth : 4.67"
  • HDMI Out : Yes
  • Receiver Height : 0.66"
  • Receiver Width : 2.83"
  • Environmentally Friendly : Yes
  • Receiver Depth : 4.67"
  • Form Factor : Rack-mountable
  • Transmitter Weight (Approximate) : 5.29 oz
  • Receiver Weight (Approximate) : 4.23 oz
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of Network (RJ-45) Ports : 2
  • Number of HDMI Inputs : 1
  • Number of HDMI Outputs : 1
