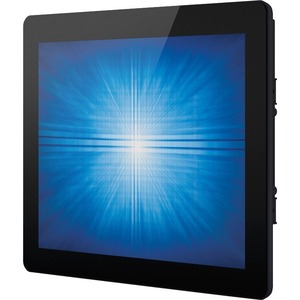

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Viewable - Surface Acoustic Wave - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

Easily integrated.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.

Touch ready.

The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.

Commercial-grade.

The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.

Other features.

  • Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
  • Display Port and VGA video interfaces
  • 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

Availability: Call or email

$609.41
$609.41
Elo Touch Solutions, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Elo 1590L 15" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms - 15" Viewable - Surface Acoustic Wave - 1024 x 768 - XGA - 16.2 Million Colors - 700:1 - 250 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year

OVERVIEW:

  • Limited Warranty : 3 Year
  • Maximum Resolution : 1024 x 768
  • Touchscreen Type : Surface Acoustic Wave
  • Screen Size Class : 15"
  • Operating Power Consumption : 12.50 W
  • Package Contents :
    • 1590L 15" Open Frame Touchscreen (Rev B)
    • HDMI cable
    • VGA Cable
    • RJ45 OSD Remote
    • Touch USB Cable
    • User Manual CD
    • Quick Install Guide
    • "L" (Side Mount) Brackets and w/Screws
    • EEI Label
    • Japan Class-B TM info sheet
  • Color Supported : 16.2 Million Colors
  • Viewable Screen Size : 15"
  • Product Color : Black
  • HDMI : Yes
  • Contrast Ratio : 700:1
  • Screen Mode : XGA
  • VESA Mount Compatible : Yes
  • USB : Yes
  • Response Time : 16 ms
  • VGA : Yes
  • Brightness : 250 Nit
  • Aspect Ratio : 4:3
  • Environmentally Friendly : Yes
  • Height : 10.4"
  • DisplayPort : Yes
  • Mount Type : Front Mount
  • Mount Type : Rack-mountable
  • Width : 13.2"
  • Depth : 1.7"
  • Backlight Technology : LED
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Weight (Approximate) : 6.40 lb
  • Additional Info

    Additional Info

    SKU 01770E334530-BF
    Weight 6.4000
    Is Featured N/A
    Manufacturer Elo Touch Solutions, Inc
    Manufacturer Part Number E334530
    Width 13.2"
    Length 1
    Height 10.4"
    Product ID 01770E334530
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
