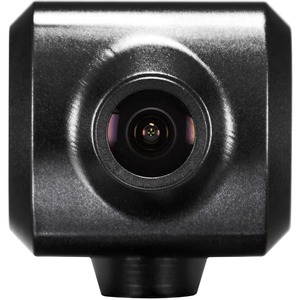

Marshall Miniature CV503-U3 2.5 Megapixel Full HD Surveillance Camera - Color - 1920 x 1080 - 2.80 mm Fixed Lens - 60 fps - CMOS

The Marshall CV503-U3 is a straight forward USB3.0 HD camera with secure locking USB connection and customizable lens options. CV503-U3 uses drivers already existent on your PC, Laptop, Mac or Linux system and is software agnostic so any soft codec can be used. Settings adjustable via UVC1.5 offer simple plug-and-play connectivity and reliable operation.

Miniature Broadcast Quality

CV503-U3 cameras use same sensor and processors as other Marshall Broadcast ProAV cameras such as CV503, CV506, CV566, CV344, CV346 commonly used in professional broadcast production, sportscast, newscast, television production, and a variety of other professional broadcast quality applications. These cameras have same adjustable broadcast features such as White Balance, Black Levels, Exposure, Gain, Gamma, and many more.

Lens Flexibility

CV503-U3 arrives with a wide angle 2.8mm lens producing a 90° horizontal angle-of-view. Choose from a variety of Focal Length options to achieve a custom AOV (angle-of-view) for your personal huddle space, streaming studio, workspace, live event venue or collaboration area. Interchangeable lenses provides unprecedented customization and personal design control.

Software Agnostic Security

Marshall's USB cameras use capture device drivers already present on your laptop or computer, so no additional drivers necessary that track and change your video capture settings. CV503-U3 is software agnostic, so feel free to use any video conference, streaming, video chat or computer video capture soft codecs on the market today.

Durable and Secure

CV503-U3 is built with same durable body as other Marshall miniature POV cameras with rear connector protection wings on back panel. CV503-U3 ships with a locking six foot USB3.0 cable, so USB cable can't be pulled out during video streaming or collaboration.

Availability: Call or email

$449.00
$449.00
Marshall Electronics, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Marshall Miniature CV503-U3 2.5 Megapixel Full HD Surveillance Camera - Color - 1920 x 1080 - 2.80 mm Fixed Lens - 60 fps - CMOS

OVERVIEW:

  • HD Recording : Yes
  • Connectivity Technology : Wired
  • Features : Gain Control
  • Features : Back Light Compensation (BLC)
  • Features : Automatic White Balance
  • Lens Type : Fixed
  • Minimum Operating Temperature : 14°F (-10°C)
  • Image Sensor Type : CMOS
  • Maximum Video Resolution : 1920 x 1080
  • Recording Formats : Full HD
  • Remote Management : No
  • Maximum Operating Temperature : 122°F (50°C)
  • Maximum Focal Length : 2.80 mm
  • Maximum Frame Rate : 60 fps
  • Lens Included : Yes
  • Color Supported : Color
  • Height : 1.8"
  • Lens Mount Type : M12-mount
  • Width : 1.7"
  • Depth : 1.9"
  • Field of View : 90°AOV
  • Effective Camera Resolution : 2.5 Megapixel
  • Weight (Approximate) : 3.84 oz
  • Additional Info

    Additional Info

    SKU 02431CV503U3-BF
    Weight 3.8400
    Is Featured N/A
    Manufacturer Marshall Electronics, Inc
    Manufacturer Part Number CV503-U3
    Width 1.7"
    Length 1
    Height 1.8"
    Product ID 02431CV503U3
    UNSPSC N/A
    Other Part Number N/A
