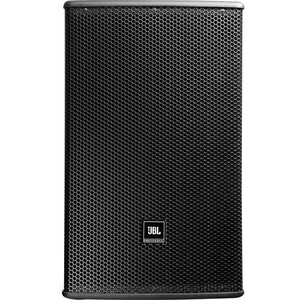

JBL Professional AE Expansion AC566 2-way Wall Mountable Speaker - 250 W RMS - Black - 1000 W (PMPO) - 15" - 1" - 75 Hz to 18 kHz - 8 Ohm

Two-Way Full-Range Loudspeaker System with 1 x 15" LF

AC566 is a compact 2-way full-range loudspeaker system comprised of one 384 mm (15 in) low frequency driver and one 25 mm (1 in) exit/35 mm (1.5 in) voice-coil compression driver. The horn provides 60° by 60° coverage in vertical and horizontal orientation. High-slope passive crossovers minimize band overlap and well-controlled offaxis response. The cabinet is fitted with M10 threaded suspension points. Four threaded inserts located on back of the enclosure allow attachment of an MultiMount® or similar type mounting. AC566 is part of JBL's AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications

Availability: Call or email

$737.14
$737.14

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

JBL Professional AE Expansion AC566 2-way Wall Mountable Speaker - 250 W RMS - Black - 1000 W (PMPO) - 15" - 1" - 75 Hz to 18 kHz - 8 Ohm

OVERVIEW:

  • Crossover Type : 2-way
  • Product Color : Black
  • RMS Output Power : 250 W
  • PMPO Output Power : 1000 W
  • Form Factor : Wall Mountable
  • Woofer Driver Size : 15"
  • Tweeter Driver Size : 1"
  • Height : 26.8"
  • Width : 16.5"
  • Country of Origin : NA
  • Depth : 17.52"
  • Minimum Frequency Response : 75 Hz
  • Maximum Frequency Response : 18 kHz
  • Sensitivity : 98 dB
  • Impedance : 8 Ohm
  • Weight (Approximate) : 43.65 lb
  • Additional Info

    Additional Info

    SKU 05080AC566-BF
    Weight 43.6500
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number AC566
    Width 16.5"
    Length 1
    Height 26.8"
    Product ID 05080AC566
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
