Applications:
- Sports Facilities
- Themed Entertainment Venues
- Outdoor Entertainment Centers
- Cruise Ships
- Water Parks

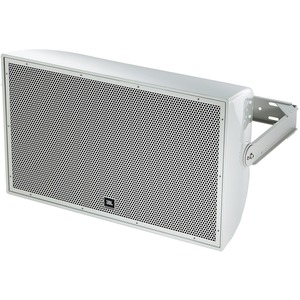

The AW526-LS is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 120° x 60° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system can be operated as an 8- ohm device and is equipped with a 400W transformer for 70/100V applications.
A corrosion-resistant extra-thick zincplated polyester powder coated U-type mounting bracket is included.
The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 16-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments.
The AW526-LS is part of JBL's AE Series, a versatile family of loudspeakers intended for a wide variety of applications.
