Taoglas Genesis MA241 2in1 4G/3G/2G 2xMIMO 2M NFC-200, Adhesive Mount Antenna - 698 MHz to 960 MHz, 1710 MHz to 2690 MHz - 5.9 dBi - Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector

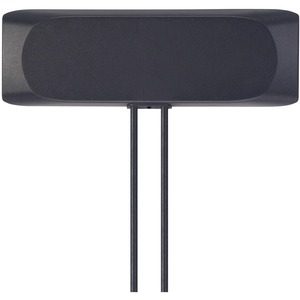

The MA241 Genesis antenna is an omni-directional, fully IP67 waterproof external M2M antenna for use in telematics, transportation and remote monitoring applications. It is designed to be mounted directly on glass or plastic in the interior of vehicles.

Typical applications
- HD Video over LTE
- First Responder and Emergency Services

This unique antenna delivers powerful MIMO antenna technology for worldwide 4G LTE bands at 700MHz/800MHz/1700MHz/1800MHz/2600MHz. It enables designers to use only one antenna that covers all common frequencies for LTE and 4G globally.

4G wireless applications demand high speed data uplink and downlink. High efficiency and high gain MIMO antennas are necessary to achieve the required signal to noise ratio and throughput required to solve these challenges. Taoglas also takes care to have high isolation between the two MIMO antennas to prevent self-interference. Low loss cables are used to keep efficiency high over long cable lengths. In contrast, smaller MIMO antennas with poorer quality thinner cables will have much reduced efficiency and isolation, which would lead to a large drop in system throughput or drops, and may indeed not make a system connection at all.

Cable length and connector types are customizable. Contact your regional Taoglas
sales office for support.

Availability: Call or email

$93.53
$93.53

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Taoglas Genesis MA241 2in1 4G/3G/2G 2xMIMO 2M NFC-200, Adhesive Mount Antenna - 698 MHz to 960 MHz, 1710 MHz to 2690 MHz - 5.9 dBi - Cellular Network - Black - Adhesive Mount - Omni-directional - SMA Connector

OVERVIEW:

  • Limited Warranty : 1 Year
  • Directivity : Omni-directional
  • Application/Usage : Cellular Network
  • Connector Type : SMA
  • Product Color : Black
  • Height : 0.49"
  • Operating Frequency Range : 1710 MHz to 2690 MHz
  • Operating Frequency Range : 698 MHz to 960 MHz
  • Width : 2.28"
  • Depth : 8.10"
  • Environmentally Friendly : Yes
  • Antenna Gain (Isotropic) : 5.9 dBi
  • Form Factor : Adhesive Mount
  • Country of Origin : Taiwan
  • Weight (Approximate) : 8.80 oz
  • Additional Info

    Additional Info

    SKU 06005MA241.BI.001-BF
    Weight 8.8000
    Is Featured N/A
    Manufacturer Taoglas
    Manufacturer Part Number MA241.BI.001
    Width 2.28"
    Length 1
    Height 0.49"
    Product ID 06005MA241.BI.001
    UNSPSC N/A
    Other Part Number N/A
