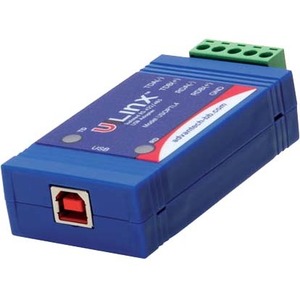

USB to Isolated 422/485 w/Plug Terminal Block and LEDs - B+B SmartWorx - Terminal Block Serial - 1 x Type B Female USB

These compact, isolated USB to RS-232 and USB to RS-422, and RS-485 converters allow you to add an asynchronous serial port to your USB only PC. The built in 2 kV isolation protects your port from dangerous ground loops. They are perfect for connecting to remote devices or programming ports in field service applications. They are USB 2.0 compatible. Model USO9ML2 is the RS-232 version and supports hand shake signals as well as data at speeds up to 460.8 Kbps. Model USOPTL4 is the RS-422 and RS-485 version and supports data rates up to 460.8 Kbps. RS-485 2-Wire and 4-Wire modes are selected using a DIP Switch. If you don't need isolation, use model USPTL4. Windows operating systems up to Windows 7 (32 and 64 bit) are supported. The USOPTL4 is equipped with our signature high retention USB port. The RS-422/485 versions have a removable terminal block. Need a strain relief for your RS-422 or RS-485 cable? Check out the accessories tab for our TB5P508SR-2PK.

Availability: Call or email

$150.06
$150.06

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

USB to Isolated 422/485 w/Plug Terminal Block and LEDs - B+B SmartWorx - Terminal Block Serial - 1 x Type B Female USB

OVERVIEW:

  • Limited Warranty : Lifetime
  • Adapter Type : Serial/USB
  • Package Contents :
    • USB To Isolated 422/485 W/Plug Term Block And Leds
    • 1 meter USB cable
    • Driver CD
  • Connector Type on First End : Terminal Block RS-422/485 Serial
  • Country of Origin : United States
  • Connector on First End Details : Terminal Block RS-422/485 Serial
  • Connector Type on Second End : USB 2.0 Type B - Female
  • Environmentally Friendly : Yes
  • Connector on Second End Details : 1 x Type B USB 2.0 USB Female
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Height : 6"
  • Width : 5.5"
  • Features : LED Indicator
  • Features : Surge Protection
  • Weight (Approximate) : 6.72 oz
  • Additional Info

    Additional Info

    SKU 01074USOPTL4-BF
    Weight 6.7200
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number USOPTL4
    Width 5.5"
    Length 1
    Height 6"
    Product ID 01074USOPTL4
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
