Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers - 400 V AC, 230 V AC - 125 A - TAA Compliant

UPS Maintenance Bypass Panel Keeps Equipment Powered During UPS Maintenance

This wall-mount three-breaker maintenance bypass panel is compatible with Tripp Lite's SUTX40K 3-phase UPS system. It allows you to reroute power around the UPS, providing an alternate path for electricity that keeps the connected load operational while the UPS is offline for maintenance or repairs.

Features 3 Built-In Circuit Breakers to Isolate Loads

Three 4-pole circuit breakers - an AC input breaker, a maintenance bypass breaker and a maintenance isolation breaker - are connected to heavy-duty buswork and isolate the UPS system from its connected load with no loss of network availability. This allows the load to remain continuously powered without costly downtime. A Kirk-key interlock system enhances safety and security. Removable handles allow the panel's trim cover to be removed for internal access. The 125A unit has a kAIC rating of 10K.

Switching Between Normal and Bypass Modes Is Easy

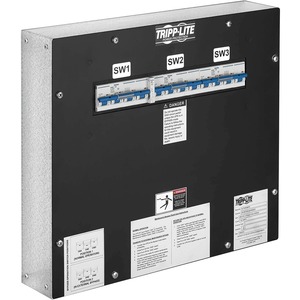

When a UPS needs maintenance, this UPS bypass panel keeps power supplied to components via its mechanical interlock system by switching power to the external bypass breaker. Simply unscrew the interlock switch, rotate the switch from the UPS AC input breaker (SW1) to the bypass breaker (SW2), then turn on the bypass breaker and turn off the UPS and isolation breaker (SW3) to perform UPS maintenance without service interruption.

Convenient Wall-Mount Installation

Made of galvanized steel, the service bypass panel has rear mounting holes for installation on a smooth, solid wall (mounting hardware not included).

Availability: Call or email

$5,058.00
$5,058.00
Eaton Corporation

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Tripp Lite by Eaton UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers - 400 V AC, 230 V AC - 125 A - TAA Compliant

OVERVIEW:

  • Limited Warranty : 1 Year
  • Plug/Connector Type : Hard Wire 4-wire (3P + N + E)
  • Package Contents :
    • UPS Maintenance Bypass Panel for SUTX40K - 3 Breakers
    • Installation and Operation Manual
  • Compatibility : Tripp Lite SUTX40K 3-phase UPS System
  • Input Voltage : 230 V AC
  • Input Voltage : 400 V AC
  • Form Factor : Wall-mountable
  • Country of Origin : United States
  • Current : 125 A
  • Height : 17.5"
  • TAA Compliant : Yes
  • Width : 20"
  • Environmentally Friendly : Yes
  • Depth : 4.6"
  • Weight (Approximate) : 20 lb
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 01731SUT40KMBPX-BF
    Weight 20.0000
    Is Featured N/A
    Manufacturer Eaton Corporation
    Manufacturer Part Number SUT40KMBPX
    Width 20"
    Length 1
    Height 17.5"
    Product ID 01731SUT40KMBPX
    UNSPSC N/A
    Other Part Number N/A
