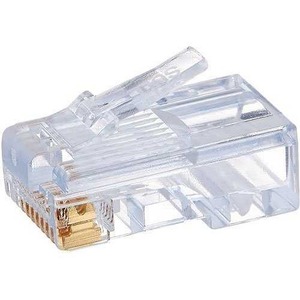

The Original EZ-RJ45 Connector simplifies twisted pair terminations by allowing the wires to be inserted through the connector and out the front. This allows the technician to easily verify the proper wiring order. Electrical performance of the termination is optimized by pulling the connector down over the cable jacket and seating it tightly in the rear of the connector. By reducing the distance between the wire twists and contacts, performance is optimized
Specifications:
- Max. Cable Outer Diameter: EZ-RJ45 Cat5e - 0.240" (6.09mm) EZ-RJ45 Cat6 - 0.275" (6.98mm) EZ-RJ45 Cat5e/6 STP Int. Ground - 0.260" (6.60mm) EZ-RJ45 Cat5e/6 STP Ext. Ground - 0.280" (7.11mm) Max. Insulation Diameter (Conductors): 0.040" (1.016mm) Same for all EZ-RJ45 Connectors
- Meets ANSI/EIA /TIA/TAA specifications
- Solid or Stranded, 24 thru 23 AWG
- UL Listed and RoHS/FCC compliant
- 50 micron gold contacts
- Color: Clear/Transparent
- Made in USA
