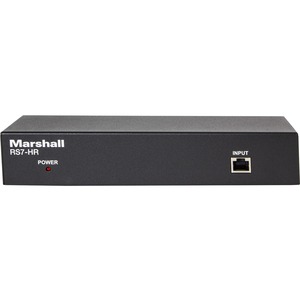

Marshall RS7-HR Signal Splitter

RS7-HR CONNECTION

The RS7-HR can be set on a desk top or you can use the included 1RU rack ears to install a rack. Please note the following:

• Before connecting your equipment please select RS232 or RS422 on the back of the unit
• Connect your controller to the Input connection on the front of the RS7-HR using a Cat 5/6 cable
• On the back of the RS7-HR connect your Cat 5/6 cables from the RS7-HR to each camera (you may need optional CV620-CABLE-07 Adapters for RS232)
• You will now connect power to the RS7-HR, you will see a red indicator light appear on the front of the unit, now you will push the refresh button once
• If you disconnect a camera or add a camera you will need to push the refresh button again
