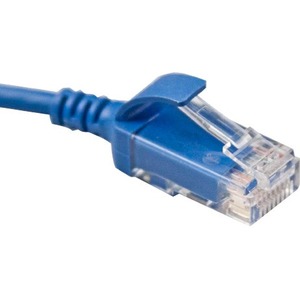

Leviton eXtreme Cat 6 High-Flex Patch Cords - 25 ft Category 6 Network Cable for Switch, Router - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 1 Gbit/s - Patch Cable - Gold Plated Contact - CM, LSZH - 28 AWG - Blue

APPLICATION:

eXtreme High-Flex Cat 6 Patch Cords are designed to be used in Cat 6 / 1-Gigabit applications and all frequencies from 1 to 250 MHz. Patch cords offer flexible, high-density patching. Cables support high-speed data applications. They reduce patch cord density in a 24-port patch panel by 38 percent when compared to typical Cat 6 patch cords.

SPECIFICATION:

Patch cords shall provide 1 Gigabit application performance for cross connecting in systems comprising of equipment, cable, and appropriate connectors. The patch cords shall be 28-gauge, unshielded, twisted-pair, stranded conductor construction with a standard 8-position modular plug on both ends. Plug contacts shall be plated with minimum of 50 micro inches of gold and rated to 2,500 mating cycles. Patch cords shall have an outer diameter of 0.15 inches (3.8mm) and shall be available in white, yellow, gray, black, red, green, and blue.

FEATURES

  • Available in white, yellow, gray, black, red, green, and blue
  • Available in stock lengths of 6 inches (0.15m) or 1-20 feet (0.30 - 6.0m) in 1-foot (0.3m) increments
  • Power over Ethernet (PoE and PoE+) compatible
  • Accommodate use in high-density switches, routers, and other electronics
  • Bend radius is a narrow 0.60 inches (15.2mm), versus 1.0 inch (25.4mm) for typical Cat 6 patch cords
  • Snagless plug design with integrated strain-relief boot
  • Plug contacts rated to 2,500 mating cycles
  • Dual-rated cable jacket (CM/LSZH)
DESIGN CONSIDERATIONS:
  • Designed to provide connectivity for Cat 6 / 1-Gigabit applications
  • Available in a variety of colors for color coding or organization
  • Channel Length:
  • Supports 96-m channels that include 90-m permanent links
  • Supports 93-m channels with 10 m of patch cords included in the channel
  • Under PoE at 90 watts, maximum bundle size is 12 cables with a separation of 1.5 inches from outer edge to outer edge of cable bundles for 28 AWG cables installed in air and a maximum ambient temperature of 45 ?C (113 ?F), as defined in TIA TSB-184-A
STANDARDS & REGULATIONS:
  • ANSI/TIA-568.2-D Cat 6
  • ISO/IEC 11801-1 Class E
  • EN 50173-1 (Class E)
  • ANSI/TIA-1096-A (formerly FCC Part 68)
  • RoHS 2 compliant
  • UL 444 - CM
  • IEC 60332-1 [1,2] (2004-07), 60754, 61034
  • IEEE 802.3bt PoE: Type 1 (15.4 W) formerly 802.3af, Type 2 (30 W) formerly 802.3at, Type 3 (60 W), Type 4 (90 W)
  • Cisco UPoE (60 W), UPoE+ (90 W)
  • Power over HDBaseT™ PoH (95 W)

Availability: Call or email

$30.83
$30.83

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Leviton eXtreme Cat 6 High-Flex Patch Cords - 25 ft Category 6 Network Cable for Switch, Router - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 1 Gbit/s - Patch Cable - Gold Plated Contact - CM, LSZH - 28 AWG - Blue

OVERVIEW:

  • Cable Type : Category 6
  • Cable Characteristic : Patch Cable
  • Product Color : Blue
  • Environmentally Friendly : Yes
  • Cable Length : 25 ft
  • Connector Type on First End : RJ-45 Network - Male
  • Connector on First End Details : 1 x RJ-45 Network - Male
  • Connector Type on Second End : RJ-45 Network - Male
  • Connector on Second End Details : 1 x RJ-45 Network - Male
  • Contact Plating : Gold
  • Shielding : No
  • Jacket Type : LSZH
  • Jacket Type : CM
  • Device Supported : Router
  • Device Supported : Switch
  • American Wire Gauge : 28 AWG
  • Data Transfer Rate : 1 Gbit/s
  • Boot Type : Snagless
  • Number of Conductors : 8
  • Features : PoH
  • Features : Cisco UPOE+
  • Features : Cisco UPOE
  • Features : Strain Relief
  • Features : Bendable
  • Features : PoE+
  • Features : PoE
  • Features : Stranded
  • Features : Flexible
