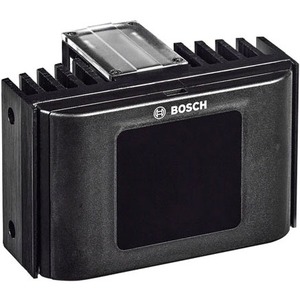

Illuminator, 850nm, short range - Short range IR illuminator 850 nm

The infrared illuminator provides covert or semi-covert lighting for short-range indoor and outdoor surveillance applications. IR illumination dramatically improves night-time imaging, and reduces noise and bit rates. The set of interchangeable diffuser lenses means that beam patterns can be selected that match your application to provide accurately illuminated scenes. The self-cleaning window reduces maintenance requirements. Specifically designed for energy efficient operation, the illuminator can be powered directly from any 12 to 32 VDC or 24 VAC supply for faster, flexible, cost effective installations.

System overview

Energy efficient surface-mount high-power LEDs deliver maximum illumination with reduced power consumption. Advanced electronic control circuitry delivers improved thermal management, long life and low cost of ownership. A pressure equalization valve prevents thermal expansion and pressure cycling. Easy access to power and photo cell adjustment facilitates quick and easy installation.

Availability: Call or email

$304.94
$304.94
The Bosch Group

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Illuminator, 850nm, short range - Short range IR illuminator 850 nm

OVERVIEW:

  • Device Supported : Surveillance Camera
  • Color Family : Black
  • Product Color : Black
  • Additional Information : Power
    • Power supply: 12 to 32 VDC or 24 VAC ±10%
    • Power consumption: 13 W
    Optical
    • Wavelength: 850 nm or 940 nm
    • IR control: Adjustable IR intensity (10% to 100%)
    • Day/night switch: Photocell, sensitivity adjustable (20 lx to 70 lx)
    • Beam angles: 10°, 20°, 30°, 60°, 80°, and 95°
    Range 850 nm
    • Beam pattern diffuser: Achievable Distance, HFOV
    • 10°: 156 m (510 ft) , 27 m (89 ft)
    • 20°: 106 m (348 ft) , 37 m (123 ft)
    • 30°: 78 m (255 ft) , 42 m (137 ft)
    • 60°: 49 m (162 ft) , 57 m (187 ft)
    • 80°: 35 m (116 ft) , 59 m (195 ft)
    • 95°: 25 m (81 ft) , 54 m (177 ft)
    Range 940 nm
    • Beam pattern diffuser Achievable Distance, HFOV
    • 10°: 95 m (313 ft) , 17 m (55 ft)
    • 20°: 57 m (186 ft) , 20 m (65 ft)
    • 30°: 46 m (151 ft) , 25 m (81 ft)
    • 60°: 28 m (93 ft) , 33 m (107 ft)
    • 80°: 21 m (70 ft) , 36 m (117 ft)
    • 95°: 14 m (46 ft) , 31 m (101 ft)
    Mechanical
    • Mount: Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
    • Cable: 3 m (9 ft)
    • Bracket dimensions (W x H x D): 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
    • Bracket weight: 0.2 kg (0.44 lbs
    Environmental
    • Operation Temperature Range: -50 °C to +50 °C (-58 °F to +122 °F)
  • Application/Usage : Surveillance
  • Product Material : Stainless Steel
  • Product Material : Polycarbonate
  • Product Material : Anodized Aluminum
  • Impact Protection (IK) Rating : IK09
  • Durability : Vandal Resistant
  • Height : 2.7"
  • Width : 4.3"
  • Features : Thermal Protection
  • Features : Night Vision
  • Features : Surface Mount
  • Features : IP66
  • Features : Self-cleaning Lens Coating
  • Features : Adjustable Light Intensity
  • Features : Adjustable Built-in Photocell
  • Features : Robust
  • Features : Adjustable
  • Features : Interchangeable Lens
  • Depth : 3"
  • Country of Origin : United Kingdom
  • Weight (Approximate) : 1.60 lb
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Additional Info

    Additional Info

    SKU 16660IIR50850SR-BF
    Weight 1.6000
    Is Featured N/A
    Manufacturer The Bosch Group
    Manufacturer Part Number IIR-50850-SR
    Width 4.3"
    Length 1
    Height 2.7"
    Product ID 16660IIR50850SR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
