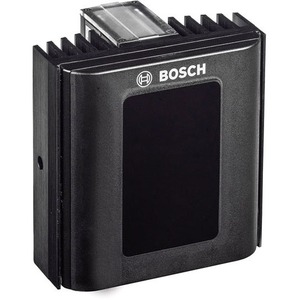

Illuminator, 850nm, medium range - Medium range IR illuminator 850 nm

Power

• Power supply x 12 to 32 VDC or 24 VAC ±10%
• Power consumption x 26 W

Optical

• Wavelength x 850 nm or 940 nm
• IR control x Adjustable IR intensity (10% to 100%)
• Day/night switch x Photocell, sensitivity adjustable (20 lx to 70 lx)
• Beam angles x 10°, 20°, 30°, 60°, 80°, and 95°

Range 850 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10? x 220 m (722 ft) 38 m (126 ft)
• 20° x 150 m (492 ft) 53 m (174 ft)
• 30? x 110 m (361 ft) 59 m (193 ft)
• 60° x 70 m (230 ft) 81 m (265 ft)
• 80° x 50 m (164 ft) 84 m (275 ft)
• 95? x 35 m (115 ft) 76 m (251 ft)

Range 940 nm

• Beam pattern diffuser x Achievable Distance* HFOV
• 10? x 135 m (443 ft) 24 m (77 ft)
• 20° x 80 m (262 ft) 28 m (93 ft)
• 30? x 65 m (213 ft) 35 m (114 ft)
• 60° x 40 m (131 ft) 46 m (152 ft)
• 80° x 30 m (98 ft) 50 m (165 ft)
• 95? x 20 m (66 ft) 44 m (143 ft)

Mechanical

• Housing x Robust anodized aluminum extrusion, black
• Front window x Polycarbonate high transmittance (vandal-resistant) with self-cleaning technology
• Mount x Black powder coated stainless steel U-bracket (adjustable with M6 socket-head wrench)
• Cable x 3 m (9 ft)
• Dimensions(W x H x D) x 110 x 115 x 76 mm (4.33 x 4.53 x 2.99 in)
• Bracket dimensions(W x H x D) x 110 x 125 x 35 mm (4.33 x 4.92 x 1.38 in)
• Weight x 1.06 kg (2.3 lbs)
• Bracket weight x 0.2 kg (0.44 lbs)

Environmental

• Operation Temperature Range x -50 °C to +50 °C (-58 °F to +122 °F)
