B+B SmartWorx RS-232 to RS-485 Converter - 1 x 25-pin DB-25 RS-232 Serial Female - 1 x Terminal Block RS-485 Serial

The 485TBLED converts unbalanced, full-duplex RS-232 signals to balanced, full or half-duplex RS-422 or RS-485 signals. RS-485 is an enhanced version of the RS-422 Standard. It allows multiple drivers and receivers on a two-wire or four-wire system.

The RS-232 port, configured as a DCE port, has a female DB25 connector with pins 2 (TD input), 3 (RD output), and 7 (Signal Ground) supported. Pins 4 (RTS) and 5 (CTS) are tied together, and pins 6 (DSR), 8 (CD), and 20 (DTR) are also tied together. Pins 1 (Frame Ground) and 7 (Signal Ground) are connected straight through to the RS-485 terminal blocks. The RS-485 terminal blocks support Transmit Data (A-) and (B+), Receive Data (A-) and (B+), Frame Ground, Signal Ground, and +12 VDC input. See Schematic.

Availability: Call or email

$97.43
$97.43

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

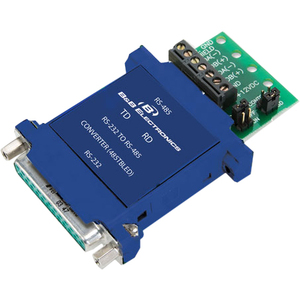

B+B SmartWorx RS-232 to RS-485 Converter - 1 x 25-pin DB-25 RS-232 Serial Female - 1 x Terminal Block RS-485 Serial

OVERVIEW:

  • Limited Warranty : Lifetime
  • Adapter Type : Serial
  • Connector Type on First End : DB-25 RS-232 Serial - Female
  • Connector on First End Details : 1 x 25-pin DB-25 RS-232 Serial Female
  • Connector Type on Second End : Terminal Block RS-485 Serial
  • Connector on Second End Details : 1 x Terminal Block RS-485 Serial
  • Additional Info

    Additional Info

    SKU 01074485TBLED-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number 485TBLED
    Width 1
    Length 1
    Height 1
    Product ID 01074485TBLED
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
