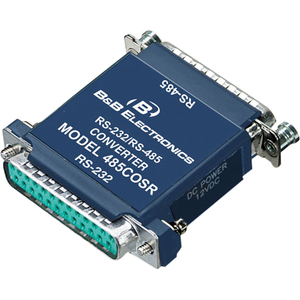

B+B SmartWorx RS-232 to RS-485 Converter - 1 x 25-pin DB-25 RS-232 Serial Female - 1 x 25-pin DB-25 RS-485 Serial Male

The RS-232 to RS-485 Converter converts unbalanced, full-duplex RS-232 signals to balanced full-duplex (4-wire), or half-duplex (2-wire) RS-485 signals. RS-485 is an enhanced version of the RS-422 balanced line standard.

The RS-232 port has a female DB25S type of connector with pins 2 (TD input) and 3(RD output) supported. Protective Ground (pin 1) and Signal Ground (pin 7) are also passed through. Pins 4(RTS) and 5(CTS) are tied together. Also pins 6(DSR), 8(CD), and 20(DTR) are tied together, but not passed through the converter. The RS-485 port has a male DB25P type of connector with the Send Data outputs on pins 2 and 14, and Receive Data inputs on pins 3 and 16 or 5 and 17.

Availability: Call or email

$96.36
$96.36

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

B+B SmartWorx RS-232 to RS-485 Converter - 1 x 25-pin DB-25 RS-232 Serial Female - 1 x 25-pin DB-25 RS-485 Serial Male

OVERVIEW:

  • Limited Warranty : Lifetime
  • Adapter Type : Serial
  • Connector Type on First End : DB-25 RS-232 Serial - Female
  • Connector on First End Details : 1 x 25-pin DB-25 RS-232 Serial Female
  • Connector Type on Second End : DB-25 RS-485 Serial - Male
  • Connector on Second End Details : 1 x 25-pin DB-25 RS-485 Serial Male
  • Additional Info

    Additional Info

    SKU 01074485COSR-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Advantech Co., Ltd
    Manufacturer Part Number 485COSR
    Width 1
    Length 1
    Height 1
    Product ID 01074485COSR
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
