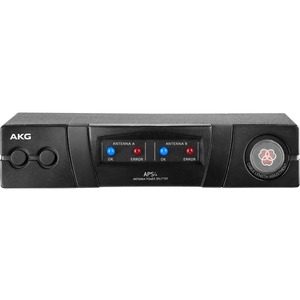

AKG APS4/NONE Antenna Power Splitter - 952 MHz - 470 Hz to 952 MHz - Metal

Split it up

The APS4 is a wide-band UHF active Antenna and Power Splitter that can feed up to 4 receivers with the RF signal coming from one pair of antennas and also supplies power to all connected receivers via BNC cables. The splitter operates in an extended frequency range of 470 to 952 MHz. Adjustable RF-level attenuation settings guarantee maximum operating distance even when using different cable lengths and different types of cables. The APS4 comes in a rugged half-rack metal housing and works with all active and passive AKG antennas available on the market (RA4000 B/W, RA4000 W, SRA2 B/W and SRA2 W). The product is shipped with a rack mount kit (RMU4000), two front mount antenna cables and ten BNC cables (MKPS) for an immediate system setup. The APS4 sets are available in four different power supply variants: EU, US, U.K. or none included.

Two rear panel antenna inputs provide a 10 VDC supply voltage for powering up to three active elements per antenna path. E.g. one active antenna (RA4000 B/W or SRA2 B/W) and two AB4000 antenna boosters connected to one RF input. Also located on the rear panel are two sets of four BNC antenna output connectors for feeding up to four diversity receivers and two additional antenna outputs for cascading up to three further APS4 devices.

Availability: Call or email

$504.23
$504.23

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

AKG APS4/NONE Antenna Power Splitter - 952 MHz - 470 Hz to 952 MHz - Metal

OVERVIEW:

  • Minimum Frequency : 470 Hz
  • Input Voltage : 10 V DC
  • Package Contents :
    • APS4/NONE Antenna Power Splitter
    • 10 x MK PS Antenna Cable
    • 1 x RMU4000 Rack Mount kit
    • 2 x Single Front Mount Cable
  • Maximum Frequency : 952 MHz
  • Product Material : Metal
  • Country of Origin : NA
  • Height : 1.7"
  • Environmentally Friendly : Yes
  • Width : 7.9"
  • Length : 7.5"
  • Weight (Approximate) : 2.34 lb
  • BNC In : Yes
  • BNC Out : Yes
  • Number of BNC Inputs : 2
  • Number of BNC Outputs : 10
  • Additional Info

    Additional Info

    SKU 050803296H00010-BF
    Weight 2.3400
    Is Featured N/A
    Manufacturer Harman International Industries, Inc
    Manufacturer Part Number 3296H00010
    Width 7.9"
    Length 7.5"
    Height 1.7"
    Product ID 050803296H00010
    UNSPSC N/A
    Other Part Number N/A
