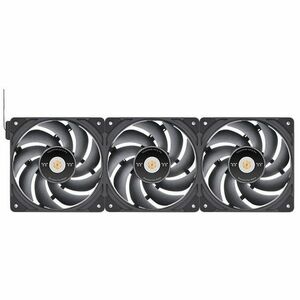

Thermaltake TOUGHFAN EX12 Pro Cooling Fan - 3 Pack - 4.72" Maximum Fan Diameter - 3 x Fan(s) - 529.6 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 2510-4P - 3 - PC - 4.6 Year Life

Steady Connection with MagForce 2.0

Evolved from SWAFAN EX's Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Say Goodbye to Excessive Cables

Connect your fans with TOUGHFAN EX Pro's MagForce 2.0 Quick Connect Design and be free from messy cables!

Specially Engineered Fan blade

TOUGHFAN EX Pro incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.

Swap the Fan Blades as You Like

Simply pop out the fan blades, switch up the blades and press them back in!

Stronger than Ever

With new technology and craftsmanship, the TOUGHFAN EX12 Pro has a maximum operating speed of 2000 RPM.

Standard Fan Blades can provide an static pressure of 3.19 mmH2O and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.

Improved Structure for Superior Performance

The TOUGHFAN EX Pro is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation.

Stare No More at the Back of the Fan!

Never compromise aesthetics for airflow direction ever again!

TOUGHFAN EX Pro's design allow your fans to always face forward!

Cleaning Made Easy!

You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.

Anti-vibration Mounting System

The TOUGHFAN EX Pro is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan's vibration, allowing the fan to spin at a higher level while maintaining a low noise level.

Availability: Call or email

$100.03
$100.03
Thermaltake Technology Co., Ltd

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Thermaltake TOUGHFAN EX12 Pro Cooling Fan - 3 Pack - 4.72" Maximum Fan Diameter - 3 x Fan(s) - 529.6 gal/min Maximum Airflow - 2000 rpm - Hydraulic Bearing - 2510-4P - 3 - PC - 4.6 Year Life

OVERVIEW:

  • Number of Fans : 3
  • Limited Warranty : 3 Year
  • Package Contents :
    • TOUGHFAN EX12 Pro Cooling Fan
    • 3 x Fan Frames
    • 3 x Standard Fan Blade (Pre-installed)
    • 3 x Reverse Fan Blade
    • 3 x Cable
  • Connectors : 2510-4P
  • Fan Bearing Type : Hydraulic Bearing
  • Rated Current : 170 mA
  • Fan Speed (Min) : 500 rpm
  • Fan Speed (Max) : 2000 rpm
  • Application/Usage : PC
  • Maximum Airflow : 529.6 gal/min
  • Country of Origin : NA
  • Noise Levels (A-Weighted) : 22.6 dB(A)
  • Fan Life : 4.6 Year
  • Maximum Fan Diameter : 4.72"
  • Maximum Air Pressure : 3.19mmH2O
  • Fan Height : 4.72"
  • Fan Width : 4.72"
  • Fan Depth : 0.98"
  • Additional Info

    Additional Info

    SKU 03386CLF171PL12BLA-BF
    Weight 1.0000
    Is Featured N/A
    Manufacturer Thermaltake Technology Co., Ltd
    Manufacturer Part Number CL-F171-PL12BL-A
    Width 1
    Length 1
    Height 1
    Product ID 03386CLF171PL12BLA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
