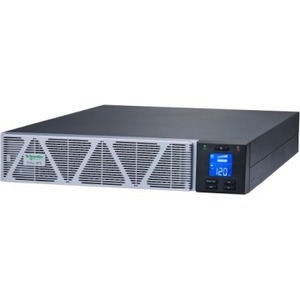

Schneider Electric Easy UPS On-Line Li-Ion SRVSL RT 3000VA 120V, with Rail Kit - 2U Rack/Tower - 2 Hour Recharge - 9.71 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - Single Phase - Sine Wave - Serial Port - USB - LCD Display - 6

Single Phase True Double-conversion On-Line UPS Lithium-Ion battery has a lifetime of eight to ten years which offers reliable support and extends the useful life of your UPS. 120V 3000VA Standard built-in runtime model with rail kit More real output power in watts 0.9 PF Up to 90% efficiency in on-line double conversion mode and up to 96% in ECO mode saves utility and cooling costs without compromising performance or reliability. Its dimensions are 438mm (width) x 632mm (depth) x 86mm (height) 2U in total. The net weighs is 22.1kg. It's ideal for Building, Electrical Distribution companies, Machine Automation, System Integrators, Equipment Manufacturers, Technology and Solution Partners. cTUVus, NOM, RETIE, UN38.3 Managemnt Card (Network Management card, Dry contact card, modbus Card) and RBC options are available. Rack/ Tower convertible design with default accessory kit.

Availability: Call or email

$5,545.00
$5,545.00
Schneider Electric SA

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Schneider Electric Easy UPS On-Line Li-Ion SRVSL RT 3000VA 120V, with Rail Kit - 2U Rack/Tower - 2 Hour Recharge - 9.71 Minute Stand-by - 120 V AC Input - 120 V AC, 110 V AC, 115 V AC Output - Single Phase - Sine Wave - Serial Port - USB - LCD Display - 6 x NEMA 5-20R, 1 x NEMA L5-30R Receptacle(s)

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 3000 VA
  • Product Color : Black
  • Package Contents :
    • Easy UPS On-Line Li-Ion SRVSL RT 3000VA 120V, with Rail Kit
    • Basic UPS Signalling RS-232 Cable
    • USB Cable
    • Rack Mounting Brackets
    • Rack Mounting Support Rails
    • Stabilization Feet
  • Display : LCD
  • Serial Port : Yes
  • Load Capacity (Watt) : 2700 W
  • Height : 3.4"
  • Maximum Operating Elevation : 9842.52 ft
  • USB : Yes
  • Plug/Connector Type : NEMA L5-30P
  • Width : 17.2"
  • Maximum Storage Elevation : 49212.60 ft
  • Receptacle Type : NEMA L5-30R
  • Receptacle Type : NEMA 5-20R
  • Input Voltage : 120 V AC
  • Depth : 24.9"
  • Storage Temperature : -4°F (-20°C) - 122°F (50°C)
  • EPO Port : Yes
  • Battery Chemistry : Lithium Ion (Li-Ion)
  • Receptacle Detail : 1 x NEMA L5-30R
  • Receptacle Detail : 6 x NEMA 5-20R
  • Input Voltage Range : 55 V AC - 150 V AC
  • Input Voltage Range : 80 V AC - 150 V AC
  • Battery Size : 48V
  • Rack Height : 2U
  • Storage Relative Humidity : 0% - 95%
  • Output Voltage : 115 V AC
  • Output Voltage : 110 V AC
  • Output Voltage : 120 V AC
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Input Frequency : 70 Hz
  • Weight (Approximate) : 48.72 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 9.71 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 19.81 Minute
  • Sound Emission (A-Weighted) : 50 dB(A)
  • Waveform Type : Sine Wave
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Surge Energy Rating : 220 J
  • Battery Life : 10 Year
  • Phase : Single Phase
  • Typical Battery Recharge Time : 2 Hour
  • Application/Usage : Manufacturing System
  • Application/Usage : Automation System
  • Application/Usage : Distribution Center
  • Application/Usage : Building System
  • Additional Info

    Additional Info

    SKU 01133SRVSL3KRARK-BF
    Weight 48.7200
    Is Featured N/A
    Manufacturer Schneider Electric SA
    Manufacturer Part Number SRVSL3KRARK
    Width 17.2"
    Length 1
    Height 3.4"
    Product ID 01133SRVSL3KRARK
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
