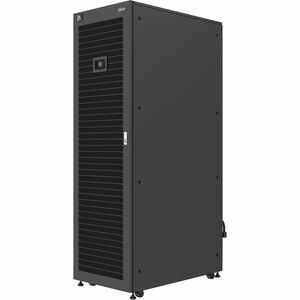

Vertiv Liebert EXS V-Model UPS tower 15kVA/15kW 208/120VAC (220/127VAC)3-phase 4 Wire|w/ Liebert Intellislot Card(SNMP)|RunTime 18min(EXSV-15KXRN) - Integrated Solution supports faster deployments | Easy to Install and Maintain | Diverse Application scena

The Vertiv Liebert EXS V-Model (EXSV-15KXRN) is a compact monolithic uninterruptible power system (UPS) that employs true on-line, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert EXS V-Model is designed to supply computers, servers, networking, and other sensitive equipment with clean sine wave input power. It is ideally suited to power IT devices in small data rooms, IT closets, VoIP, ISDN, storage, and security systems. It offers economical, efficient, and reliable three-phase power for critical loads up to 15kVA. This intelligent UPS has flexible UPS, power distribution and battery arrangements to meet capacity and runtime demands. It has an integrated maintenance bypass cabinet, which ensures critical loads operate even during service. It has unity power factor and high power-density in an optimized design and standalone unit. It is easy to install and operate.

More from the Manufacturer

Availability: Call or email

$24,500.00
$24,500.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Vertiv Liebert EXS V-Model UPS tower 15kVA/15kW 208/120VAC (220/127VAC)3-phase 4 Wire|w/ Liebert Intellislot Card(SNMP)|RunTime 18min(EXSV-15KXRN) - Integrated Solution supports faster deployments | Easy to Install and Maintain | Diverse Application scenarios - In-Row, Room and against the wall| Maximum efficiency and eco mode saves energy | Flexible UPS, PDU and battery arrangements | High Power Factor | Has Integrated Maintenance Bypass option

OVERVIEW:

  • Limited Warranty : 1 Year
  • Load Capacity (VA) : 15 kVA
  • Package Contents :
    • EXSV-15KXRN 15kVA Tower UPS
    • Quick Installation Guide
    • Vertiv™ Power Insight Management Software (free download from Vertiv.com)
    • IS-Unity DP Communication Card
    • Safety Instructions
    • WEE Recycling Sheet (ISO 14001 Compliance)
  • Network Management : Relay Contact
  • Network Management : SNMP/Modbus/TCP/BacNet IP
  • Network Management : Modbus RS-485
  • Network Management : Intelligent Card Slot
  • Environmental Sensors : Temperature Sensor
  • Environmental Sensors : Humidity Sensor
  • Load Capacity (Watt) : 15 kW
  • Form Factor : Tower
  • Software Included : Vertiv Power Insight Management
  • Maximum Operating Temperature : 104°F (40°C)
  • Plug/Connector Type : Hard Wire 4-wire (3PH + G)
  • Energy Star : Yes
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : Hard Wire 4-wire (3PH + G)
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Height : 78.7"
  • Maximum Operating Elevation : 4921 ft
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 2 x Hard Wire 4-wire (3PH + G)
  • Width : 23.6"
  • Output Voltage : 127 V AC
  • Output Voltage : 220 V AC
  • Output Voltage : 120 V AC
  • Output Voltage : 208 V AC
  • Depth : 39.3"
  • Environmentally Friendly : Yes
  • Input Frequency : 70 Hz
  • Input Frequency : 40 Hz
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 1455 lb
  • Output Frequency : 60 Hz
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Backup/Run Time (Full Load) : 18 Minute
  • Backup/Run Time (Half Load) : 49 Minute
  • Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Output Power Factor : 1
  • Phase : Three Phase
  • Application/Usage : Manufacturing Facility
  • Application/Usage : Healthcare
  • Application/Usage : Retail
  • Application/Usage : Banking
  • Application/Usage : Security System
  • Application/Usage : VoIP
  • Application/Usage : Medical Equipment
  • Application/Usage : Medical
  • Application/Usage : IT System
  • Application/Usage : Storage Device
  • Application/Usage : Server
  • Application/Usage : IT
  • Application/Usage : Data Center
  • Additional Info

    Additional Info

    SKU 04478EXSV15KXRN-BF
    Weight 1455.0000
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number EXSV-15KXRN
    Width 23.6"
    Length 1
    Height 78.7"
    Product ID 04478EXSV15KXRN
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
