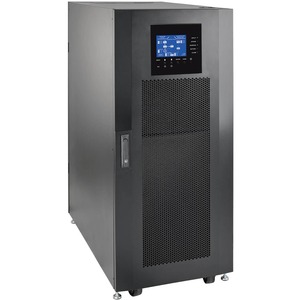

Tripp Lite by Eaton SmartOnline SV Series 40kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 3 Battery Modules - 6.70 Minute Full Load - 15 Minute Half Load - 40 kVA / 36 kW - SNMP Manageable, Telnet, SSHHar

Description
The SV40KS2P3B SmartOnline® SV Series 40kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

The SV40KS2P3B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), two 20kVA SV20PM power modules and three SVBM battery modules. Space is included for one additional user-installable SV20PM power module. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.

Availability: Call or email

$41,083.71

Qty:

Description

Details

Tripp Lite by Eaton SmartOnline SV Series 40kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 3 Battery Modules - 6.70 Minute Full Load - 15 Minute Half Load - 40 kVA / 36 kW - SNMP Manageable, Telnet, SSHHard Wire 4-wire (3P + N + E) - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower

OVERVIEW:

Limited Warranty : 1 Year

Load Capacity (VA) : 40 kVA

Package Contents :

SmartOnline SV40KS2P3B 40KVA Tower UPS
Pre-installed WEBCARDLX
network interface
2 X SV20PM 20kVA powermodules
3 X SVBM battery modules
DB9 Cabling
Owner's manual

Network Management : SSH

Network Management : Telnet

Network Management : SNMP Manageable

Form Factor : Tower

Plug/Connector Type : Hardwired

Receptacle Type : Hard Wire 4-wire (3P + N + E)

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Height : 58.1"

Country of Origin : NA

Input Voltage Range : 120 V AC - 220 V AC

Width : 23.6"

Output Voltage : 230 V AC

Output Voltage : 120 V AC

Depth : 43.3"

Environmentally Friendly : Yes

Weight (Approximate) : 1437 lb

Backup/Run Time (Full Load) : 6.70 Minute

Waveform Type : Pure Sine Wave

Backup/Run Time (Half Load) : 15 Minute

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Phase : Three Phase

Additional Info

SKU	01731SV40KS2P3B-BF
Weight	1437.0000
Is Featured	N/A
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SV40KS2P3B
Width	23.6"
Length	1
Height	58.1"
Product ID	01731SV40KS2P3B
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
