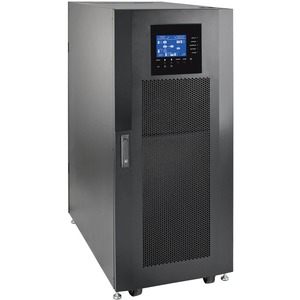

Tripp Lite by Eaton SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module - 3.90 Minute Full Load - 8 Minute Half Load - 20 kVA / 18 kW - SNMP Manageable, SSH, TelnetHard

Overview

The SV20KS1P1B SmartOnline® SV Series 20kVA Small-Frame 3-Phase On-Line Double-Conversion UPS System delivers true scalability and offers the highest level of secure, uninterrupted power protection. Featuring a modular, scalable design with high-efficiency voltage and frequency independent (VFI) operation, this on-line UPS system with a high 0.9 power factor is ideal for protecting a variety of critical IT systems.

The SV20KS1P1B includes pre-installed input, bypass and output breakers, as well as a static transfer switch (STS), one 20kVA SV20PM power module and one SVBM battery module. Space is included for up to two additional user-installable SV20PM power modules and two SVBM internal battery modules. External ±120VDC battery options, such as BP240V370, are also available from Tripp Lite for even more extended runtime.

Availability: Call or email

$27,843.76

Qty:

Description

Details

Tripp Lite by Eaton SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module - 3.90 Minute Full Load - 8 Minute Half Load - 20 kVA / 18 kW - SNMP Manageable, SSH, TelnetHard Wire 4-wire (3P + N + E) - Input Voltage: 120 V AC, 230 V AC - Output Voltage: 120 V AC, 230 V AC - Tower

OVERVIEW:

Limited Warranty : 1 Year

Load Capacity (VA) : 20 kVA

Package Contents :

SmartOnline SV 20KVA Tower UPS
Pre-installed WEBCARDLX Network Interface
1 x SV20PM 20kVA Power Module
1 x SVBM Battery module
DB9 Cabling
Owner's Manual

Network Management : Telnet

Network Management : SSH

Network Management : SNMP Manageable

Form Factor : Tower

Plug/Connector Type : Hardwired

Receptacle Type : Hard Wire 4-wire (3P + N + E)

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Height : 58.1"

Country of Origin : NA

Input Voltage Range : 120 V AC - 220 V AC

Width : 23.6"

Output Voltage : 230 V AC

Output Voltage : 120 V AC

Depth : 43.3"

Environmentally Friendly : Yes

Weight (Approximate) : 901 lb

Backup/Run Time (Full Load) : 3.90 Minute

Waveform Type : Pure Sine Wave

Backup/Run Time (Half Load) : 8 Minute

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Phase : Three Phase

Additional Info

SKU	01731SV20KS1P1B-BF
Weight	901.0000
Is Featured	N/A
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SV20KS1P1B
Width	23.6"
Length	1
Height	58.1"
Product ID	01731SV20KS1P1B
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Tripp Lite by Eaton SmartOnline SV Series 20kVA Small-Frame Modular Scalable 3-Phase On-Line Double-Conversion 208/120V 50/60 Hz UPS System, 1 Battery Module - 3.90 Minute Full Load - 8 Minute Half Load - 20 kVA / 18 kW - SNMP Manageable, SSH, TelnetHard
