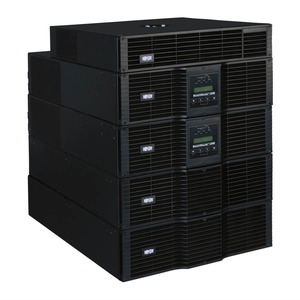

Tripp Lite by Eaton SmartOnline 208/240 & 120V 20kVA 18kW, Double-Conversion UPS, N+1, 14U, Network Card Slot, USB, DB9, Bypass Switch - 14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Outp

Tripp Lite SU20KRT-1TF 20,000VA / 20kVA / 18,000 watt online, double-conversion UPS system offers complete power protection for critical server, network and telecommunications equipment in a 14U rack/tower configuration. This system delivers complete N+1 redundancy when used at loads up to 10kVA, and non-redundant operation at loads between 10 and 20kVA. Fault-tolerant auto-bypass prevents unexpected service interruptions during UPS overload or internal fault conditions. Included parallel PDU with manual bypass switching enables hot-swappable replacement of all major UPS system components in both N+1 and combined operating modes. Enhanced availability, fault tolerance and simple hot-swap replacement options make this UPS ideal for advanced networking applications in data centers, computer rooms, network closets and rugged industrial locations.

Availability: Call or email

$16,431.57
$16,431.57

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Tripp Lite by Eaton SmartOnline 208/240 & 120V 20kVA 18kW, Double-Conversion UPS, N+1, 14U, Network Card Slot, USB, DB9, Bypass Switch - 14U Rack/Tower - 8 Hour Recharge - 4.30 Minute Stand-by - 208 V AC, 240 V AC Input - 120 V AC, 208 V AC, 240 V AC Output - 2 x NEMA L6-30R, 4 x NEMA 5-15R, 8 x NEMA 5-15/20R, 8 x IEC 60320 C19 - Serial Port - USB

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 20 kVA
  • Package Contents :
    • SmartOnline EZ SU20KRT-1TF 20kVA Tower/Rack Mountable UPS
    • 2 x Power Modules
    • 2 x Battery Packs
    • 1 x Transformer
    • L6-30R / C19 Parallel PDU with Bypass Switch
    • 5 x Set of 4 post Rackmount Installation Rails
    • PowerAlert Software CD
    • USB Cable
    • Serial Cable
    • EPO Cable
  • Network Management : SNMP Manageable
  • Serial Port : Yes
  • Form Factor : Rack/Tower
  • Software Included : PowerAlert Software
  • Plug/Connector Type : Hardwired
  • Rack Height : 14U
  • USB : Yes
  • Receptacle Type : IEC 60320 C19
  • Receptacle Type : NEMA 5-15/20R
  • Receptacle Type : NEMA 5-15R
  • Receptacle Type : NEMA L6-30R
  • Input Voltage : 240 V AC
  • Input Voltage : 208 V AC
  • Height : 5.1"
  • Country of Origin : NA
  • Receptacle Detail : 8 x IEC 60320 C19
  • Receptacle Detail : 8 x NEMA 5-15/20R
  • Receptacle Detail : 4 x NEMA 5-15R
  • Receptacle Detail : 2 x NEMA L6-30R
  • Width : 17.5"
  • Output Voltage : 240 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 120 V AC
  • Depth : 26"
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 44.10 lb
  • Output Frequency : 60 Hz
  • Backup/Run Time (Full Load) : 4.30 Minute
  • Backup/Run Time (Half Load) : 12.50 Minute
  • Transfer Time : 0 ns
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Overload Protection : Yes
  • Typical Battery Recharge Time : 8 Hour
  • Additional Info

    Additional Info

    SKU 01731SU20KRT1TF-BF
    Weight 44.1000
    Is Featured N/A
    Manufacturer Tripp Lite by Eaton
    Manufacturer Part Number SU20KRT-1TF
    Width 17.5"
    Length 1
    Height 5.1"
    Product ID 01731SU20KRT1TF
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
