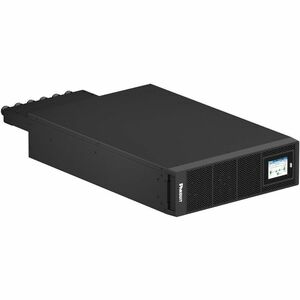

Panduit SmartZone U15N32V 15000VA Rack-mountable UPS - 7U Rack-mountable - AVR - 5 Hour Recharge - 12 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Input - 230 V AC, 220 V AC, 240 V AC, 380 V AC, 400 V AC Output - Pure Sine Wave - Serial Port - USB - LCD

The UPS with maintenance-free VRLA battery, 3-Phase 230/400 V unit is a true Online Double Conversion system that delivers highly efficient and reliable power protection for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring, and network functions, complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT equipment.

Key Features and Benefits | Online Double Conversion with fully digital control

Provides stable and clean power with less ripple and by filtering noise, automatic voltage regulation (AVR) and surge protection

Wide input voltage range

138-485Vac, covering extended voltage range, applicable for severe situation such as large power grid fluctuation

High efficiency

Up to 98.5%, reducing the energy waste and the cost of electricity

Energy savings

High Efficiency on Smart ECO mode for Online Double Conversion models

Green design

RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units

Output unity power factor

Means more active power for customer's load

Input power factor

Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)

Matchable battery packs:

Allows to connect maximum four external battery packs, extending the UPS backup time

Three-stage battery charging method

Three-stage battery charging method matching the most optimal curve and temperature compensated with advanced algorithms prolonging the battery life

EPO function (Emergency Power Off)

Allows to quickly and easily shut down the UPS when emergency event occurs

Generator compatible

Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation

Hot-Swappable battery design

Can perform the replacement of battery cartridge without powering down the UPS

Cold start function

Allows to boot up the UPS without mains input but with batteries

Intelligent fan speed regulation

Automatic adjustment of fan speed due to the ambient temperature and load percentage

Touch-screen colorful LCD

Colorful LCD with cold start button and LED indicators, providing intuitive display

Multiple communication interface

RS232/RS485/USB/intelligent slot, realizing communication and monitoring function

Comprehensive protection function

Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage and fan fault alarm

Parallel functionality:

Connect up to 4 units to achieve very high availability of backup power

Inverter design

3-Level IGBT for significant advantages of high efficiency, impact resistance, and reliability

Additional Redundancy

Shared battery group and support dual input to achieve very high availability of backup power

Output Options

Supports 3-Phase or single phase output

Availability: Call or email

$12,032.33
$12,032.33

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Panduit SmartZone U15N32V 15000VA Rack-mountable UPS - 7U Rack-mountable - AVR - 5 Hour Recharge - 12 Minute Stand-by - 380 V AC, 400 V AC, 415 V AC Input - 230 V AC, 220 V AC, 240 V AC, 380 V AC, 400 V AC Output - Pure Sine Wave - Serial Port - USB - LCD Display

OVERVIEW:

  • Limited Warranty : 3 Year
  • AVR : Yes
  • Load Capacity (VA) : 15 kVA
  • Product Color : Black
  • Package Contents :
    • SmartZone U15N32V 15000VA Rack-mountable UPS
    • Intelligent Network Card
  • Network Management : SNMPv3
  • Network Management : RS-232/RS-485/USB/Intelligent Slot
  • Display : LCD
  • Serial Port : Yes
  • DC System Voltage : 480 V DC
  • Additional Warranty Information :

    3 years for UPS and EBP & 2 years for VRLA battery cartridges

  • Load Capacity (Watt) : 15 kW
  • Form Factor : Rack-mountable
  • Software Included : Cloud Ready
  • Alarm : Fan Fault
  • Alarm : Overheat
  • Alarm : Overload
  • Maximum Operating Temperature : 104°F (40°C)
  • Network (RJ-45) : Yes
  • Number of Batteries : 40
  • Plug/Connector Type : Hardwire Terminal (L + N + G)
  • Rack Height : 7U
  • Energy Star : Yes
  • USB : Yes
  • Battery Characteristics : Valve-regulated
  • Receptacle Type : Hardwire Terminal
  • Input Voltage : 415 V AC
  • Input Voltage : 400 V AC
  • Input Voltage : 380 V AC
  • Height : 5.2"
  • Maximum Operating Elevation : 9842.52 ft
  • Battery Chemistry : Lead Acid
  • Input Voltage Range : 305 V AC - 485 V AC
  • Input Voltage Range : 138 V AC - 485 V AC
  • Width : 17.3"
  • EPO Port : Yes
  • Battery Size : 12V
  • Output Voltage : 400 V AC
  • Output Voltage : 380 V AC
  • Output Voltage : 240 V AC
  • Output Voltage : 220 V AC
  • Output Voltage : 230 V AC
  • Depth : 26"
  • Environmentally Friendly : Yes
  • Battery Capacity : 9000 mAh
  • Input Frequency : 70 Hz
  • Input Frequency : 40 Hz
  • Weight (Approximate) : 874.86 lb
  • Output Frequency : 60 Hz
  • Output Frequency : 50 Hz
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Backup/Run Time (Full Load) : 12 Minute
  • Waveform Type : Pure Sine Wave
  • Backup/Run Time (Half Load) : 24 Minute
  • Transfer Time : 0 ns
  • Surge Energy Rating : 600 J
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 706.59 W
  • Overload Protection : Yes
  • Output Power Factor : 1
  • Typical Battery Recharge Time : 5 Hour
  • Phase : Three Phase
  • Replaceable Battery : Yes
  • Application/Usage : Network
  • Application/Usage : Edge IT Infrastructure
  • Application/Usage : Data Center
  • Application/Usage : IT Equipment
  • Efficiency : 98.5%
