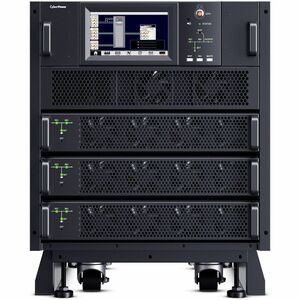

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System - 10-20K UPS Cabinet, Modular, AC 208/120V 220/127V, 11U, 1YR Warranty

The CyberPower SM020KAMFA Smart App Online 3-Phase Modular UPS System brings flexibility, space savings, and efficiency to 3-Phase power protection technology. Configurable for N+N system or N+1 power module redundancy, the system can intelligently manage individual modules to achieve higher efficiency. The customizable modular design can be configured as a tower, side-by-side, or integrated within a rack. The high-density, scalable 10kVA/10kW power modules are 2U in height, saving space while providing more options for capacity expansion.

The SM020KAMFA features double-conversion topology for seamless power protection and a pre-installed RMCARD205 for remote management. The user-friendly 7" color touchscreen displays key status indicators at-a-glance. Three-stage Smart Battery Management (SBM) equalizes battery voltages and reduces excessive heat to extend battery life. Plus, hot-swappable power modules, battery and, bypass allow for rapid replacement and minimal impact to system operation. Ideal for high-end data centers, the SM020KAMFA Smart App Online 3-Phase Modular UPS System assures reliable, high-quality AC power and includes a One-Year Limited Warranty.

Availability: Call or email

$10,456.89
$10,456.89
CyberPower Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

CyberPower SM020KAMFA 3-Phase Modular Smart App Online UPS System - 10-20K UPS Cabinet, Modular, AC 208/120V 220/127V, 11U, 1YR Warranty

OVERVIEW:

  • Limited Warranty : 1 Year
  • AVR : Yes
  • Load Capacity (VA) : 20 kVA
  • Product Color : Black
  • Package Contents :
    • SM020KAMFA 3-Phase Modular Smart App Online UPS System
    • Mounting Hardware
  • Network Management : SNMP/HTTP Remote Monitoring
  • Serial Port : Yes
  • Status Indicators :
    • LCD: Multifunction LCD
    • LED Indicators: Rectifier
  • DC System Voltage : 120 V DC
  • Form Factor : Modular
  • Software Included : PowerPanel Business
  • Maximum Operating Temperature : 104°F (40°C)
  • Plug/Connector Type : Hardwired
  • Rack Height : 11U
  • Storage Temperature : -4°F (-20°C) - 158°F (70°C)
  • Receptacle Type : Hardwired
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Height : 23.9"
  • Maximum Operating Elevation : 10000 ft
  • USB (HID Compliant) Port : Yes
  • Receptacle Detail : 1 x Hardwired
  • Input Voltage Range : 187 V AC - 260 V AC
  • Width : 19.1"
  • EPO Port : Yes
  • Output Voltage : 220 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 127 V AC
  • Output Voltage : 120 V AC
  • Depth : 30.5"
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 133.80 lb
  • Storage Relative Humidity : 0% - 95%
  • Output Frequency : 60 Hz
  • Waveform Type : Sine Wave
  • Sound Emission (A-Weighted) : 56 dB(A)
  • Transfer Time : 0 ns
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 1679.93 W
  • Number of External Battery Cabinets : 6
  • Protection Type : Short Circuit
  • Protection Type : Backfeed
  • Overload Protection : Yes
  • Phase : Three Phase
  • Energy Saving : Online ECO Mode Efficiency >97.5%
  • Additional Info

    Additional Info

    SKU 01589SM020KAMFA-BF
    Weight 133.8000
    Is Featured N/A
    Manufacturer CyberPower Systems, Inc
    Manufacturer Part Number SM020KAMFA
    Width 19.1"
    Length 1
    Height 23.9"
    Product ID 01589SM020KAMFA
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
