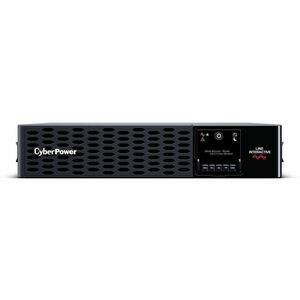

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS Systems - 2200VA/2200W, 120 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

The PR2200RTXL2UHVAN is a high voltage Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

The Smart App Sinewave PR2200RTXL2UHVAN improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR2200RTXL2UHVAN also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.

This model accepts the BP48VP2U03 Extended Battery Module (EBM) for expanded runtime during power outages and includes pre-installed RMCARD205 network management card for remote management and control via a standard web browser or network management system.

With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR2200RTXL2UHVAN.

More from the Manufacturer

Availability: Call or email

$1,578.41
$1,578.41
CyberPower Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

CyberPower PR2200RTXL2UHVAN Smart App Sinewave UPS Systems - 2200VA/2200W, 120 VAC, NEMA L6-20P, 2U, Rack / Tower, Sine Wave, 6 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • AVR : Yes
  • Load Capacity (VA) : 2200 VA
  • Product Color : Black
  • Network Management : SNMP/HTTP Remote Monitoring
  • Serial Port : Yes
  • Status Indicators : Multifunction LCD Panel:
    • 47 Settings (27 setup and control items + 20 status updates and log menus)
    LED Indicators:
    • Power on
    • Line mode
    • Battery mode
    • Fault
    • Night mode
  • Form Factor : Rack/Tower
  • Software Included : PowerPanel® Business Edition
  • Alarm : Battery Mode
  • Alarm : Overload
  • Alarm : Low Battery
  • Alarm : Overheat
  • Alarm : Over Charge
  • Maximum Operating Temperature : 104°F (40°C)
  • Network (RJ-45) : Yes
  • Number of Batteries : 8
  • Plug/Connector Type : NEMA L6-20P
  • Rack Height : 2U
  • Energy Star : Yes
  • Storage Temperature : 5°F (-15°C) - 113°F (45°C)
  • Battery Characteristics : Sealed
  • Receptacle Type : NEMA L6-20R
  • Receptacle Type : NEMA 6-20R
  • Input Voltage : 230 V AC
  • Height : 3.4"
  • Country of Origin : Philippines
  • Maximum Operating Elevation : 9842.52 ft
  • USB (HID Compliant) Port : Yes
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 2 x NEMA L6-20R
  • Receptacle Detail : 4 x NEMA 6-20R
  • Input Voltage Range : 131 V AC - 302 V AC
  • Width : 17.1"
  • Maximum Storage Elevation : 49212.60 ft
  • EPO Port : Yes
  • Battery Size : 12V
  • Number of Battery & Surge Outlets : 6
  • Output Voltage : 240 V AC
  • Output Voltage : 230 V AC
  • Output Voltage : 220 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 200 V AC
  • Depth : 24.8"
  • Environmentally Friendly : Yes
  • Battery Capacity : 6000 mAh
  • Input Frequency : 63 Hz
  • Weight (Approximate) : 92.59 lb
  • Storage Relative Humidity : 0% - 95%
  • Output Frequency : 60 Hz
  • Backup/Run Time (Full Load) : 5.30 Minute
  • Number of Critical Load Outlets : 2
  • Waveform Type : Sine Wave
  • Sound Emission (A-Weighted) : 57.5 dB(A)
  • Backup/Run Time (Half Load) : 15.20 Minute
  • Transfer Time : 4 ms
  • Surge Energy Rating : 2430 J
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 24.35 W
  • Dataline Protection : RJ-45
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Replaceable Battery : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Additional Info

    Additional Info

    SKU 01589PR2200RTXL2UHVAN-BF
    Weight 92.5900
    Is Featured N/A
    Manufacturer CyberPower Systems, Inc
    Manufacturer Part Number PR2200RTXL2UHVAN
    Width 17.1"
    Length 1
    Height 3.4"
    Product ID 01589PR2200RTXL2UHVAN
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
