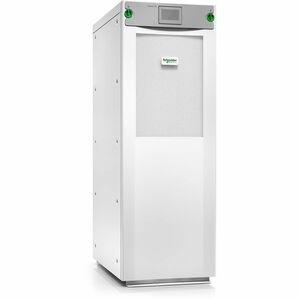

APC by Schneider Electric Galaxy VS 120kVA Modular UPS - Modular - 480 V AC Input - 380 V AC, 415 V AC, 480 V AC Output - Sine Wave - LCD Display

Highly efficient, easy-to-deploy 120kW, 480V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. Includes 5x8 start-up service.

Availability: Call or email

$51,195.00

Qty:

Description

Details

APC by Schneider Electric Galaxy VS 120kVA Modular UPS - Modular - 480 V AC Input - 380 V AC, 415 V AC, 480 V AC Output - Sine Wave - LCD Display

OVERVIEW:

Limited Warranty : 1 Year

Load Capacity (VA) : 120 kVA

Product Color : White

Package Contents :

Galaxy VS 120kVA Modular UPS
Dust Filter
Installation Guide
Integrated Network Management
Power Modules Ship Installed
Start-Up Service

Display : LCD

DC System Voltage : 576 V DC

Additional Warranty Information :

1 year on-site repair or replace with factory authorized Start-Up

Load Capacity (Watt) : 120 kW

Form Factor : Modular

Maximum Operating Temperature : 104°F (40°C)

Energy Star : Yes

USB : No

Battery Characteristics : Valve-regulated

Input Voltage : 480 V AC

Height : 58.5"

Maximum Operating Elevation : 3300 ft

Battery Chemistry : Lead Acid

Battery Chemistry : Lithium Ion (Li-Ion)

Input Voltage Range : 408 V AC - 552 V AC

Width : 20.5"

Output Voltage : 480 V AC

Output Voltage : 415 V AC

Output Voltage : 380 V AC

Depth : 33.4"

Input Frequency : 70 Hz

Input Frequency : 40 Hz

Weight (Approximate) : 612.89 lb

Storage Relative Humidity : 10% - 80%

Output Frequency : 60 Hz

Output Frequency : 50 Hz

Energy Efficiency Certification : ENERGY STAR 2.0

Waveform Type : Sine Wave

Sound Emission (A-Weighted) : 64 dB(A)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Environmental Compliance : China Restriction of Hazardous Substances (China RoHS)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Thermal Dissipation : 3268.33 W

Protection Type : Backfeed

Input Power Factor : 0.7

Phase : Three Phase

Application/Usage : Industrial

Application/Usage : Communication Application

Application/Usage : Infrastructure

Application/Usage : Data Center

Efficiency : 97.2%

Additional Info

SKU	01133GVSUPS120KGS-BF
Weight	612.8900
Is Featured	N/A
Manufacturer	Schneider Electric SA
Manufacturer Part Number	GVSUPS120KGS
Width	20.5"
Length	1
Height	58.5"
Product ID	01133GVSUPS120KGS
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
