Vertiv Liebert ITA2 UPS 8kVA/7.2kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with SNMP card, 1 pair of ITA2 Li-ion battery (ITA2LI-08KRT2085UN) - rack-mountable / tower | with Liebert Intellislot Card (IS-UNITY-DP) compatible with all Liebert SN Sensors |

Vertiv Liebert ITA2 UPS 8kVA/7.2kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with SNMP card, 1 pair of ITA2 Li-ion battery (ITA2LI-08KRT2085UN) - rack-mountable / tower | with Liebert Intellislot Card (IS-UNITY-DP) compatible with all Liebert SN Sensors |

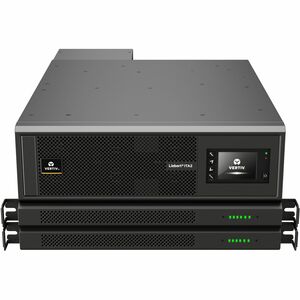

The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true online, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable three-phase power for critical loads up to 8kVA. In rackmount or tower configuration, this intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. It has a 2-year warranty. The Vertiv MPL for Liebert ITA2 External Battery Cabinet System has a rackmount or tower configuration. The EBC System consists of (2) 1U cabinets per string (total 2U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. It has a 5-year warranty.

Description

Details

Vertiv Liebert ITA2 UPS 8kVA/7.2kW; 208/120VAC (220/127VAC) - 3-phase 4 Wire with SNMP card, 1 pair of ITA2 Li-ion battery (ITA2LI-08KRT2085UN) - rack-mountable / tower | with Liebert Intellislot Card (IS-UNITY-DP) compatible with all Liebert SN Sensors | one pair of ITA2 Li-ion battery cabinet system included

OVERVIEW:

Limited Warranty : 2 Year

Load Capacity (VA) : 8000 VA

Product Color : Gray

Product Color : Black

Package Contents :

ITA2LI-08KRT2085UN UPS
USB Cable
Rack Handles & Associated Hardware
Rack Rail Kit & Associated Hardware
Wiring Boxes with Knockouts Installed on Back of Module
4 x Support Base ends for Tower Mount Application
2 x Support Base Extension
Quick Start Guide (install & Start-up)/Safety Instruction Booklet
IS-Unity-DP Intellislot Communication Card Installed
Power Cable Kit - UPS to 1st Battery String
Communication Cable - UPS to 1st Battery String
1 x string Li-ion Battery Cabinets

Network Management : Network Card

Network Management : Modbus TCP

Network Management : SNMP

Serial Port : Yes

Additional Warranty Information :

2 year standard; 1 & 3 Additional years optional

Load Capacity (Watt) : 7200 W

Height : 5.1"

USB : Yes

Plug/Connector Type : Hardwired

Width : 16.9"

Energy Star : Yes

Alarm : Alarm

Network (RJ-45) : Yes

Receptacle Type : Hardwired

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Depth : 19.7"

Country of Origin : NA

EPO Port : Yes

Battery Chemistry : Lithium Ion (Li-Ion)

Input Voltage Range : 166 V AC - 249 V AC

TAA Compliant : No

Input Current : 24 A

Rack Height : 3U

Output Voltage : 127 V AC

Output Voltage : 220 V AC

Output Voltage : 120 V AC

Output Voltage : 208 V AC

Form Factor : Rack/Tower

Environmentally Friendly : Yes

Minimum Operating Temperature : 32°F (0°C)

Weight (Approximate) : 50.70 lb

Maximum Operating Temperature : 122°F (50°C)

Backup/Run Time (Full Load) : 14 Minute

Energy Efficiency Certification : ENERGY STAR 2.0

Backup/Run Time (Half Load) : 28 Minute

Sound Emission (A-Weighted) : 58 dB(A)

Overload Protection : Yes

Waveform Type : Pure Sine Wave

Environmental Compliance : Restriction of Hazardous Substances (RoHS) 2

Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Thermal Dissipation : 533.10 W

Surge Energy Rating : 80 J

Transfer Time : 0 ns

Circuit Breaker : Yes

EMI/RFI Noise Filter : Yes

Phase : Three Phase

Hot Swappable : Yes

Typical Battery Recharge Time : 2 Hour

Output Power Factor : 0.9

Replaceable Battery : Yes

Application/Usage : Electronic

Application/Usage : IOT Device

Application/Usage : Large Network Peripheral

Application/Usage : VoIP Device

Application/Usage : Network Closet

Application/Usage : Network Workstation

Application/Usage : Server

Surge Suppression : Yes

Features : Built-in Bypass Switch

Additional Info

SKU	04478ITA2LI08KRT2085UN-BF
Weight	50.7000
Is Featured	N/A
Manufacturer	Vertiv
Manufacturer Part Number	ITA2LI-08KRT2085UN
Width	16.9"
Length	1
Height	5.1"
Product ID	04478ITA2LI08KRT2085UN
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
