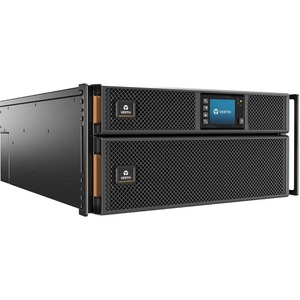

Vertiv Liebert GXT5 UPS - 8kVA/8kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 8kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With high power factor (0.9-1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU101 communications card for remote monitoring to help you make more informed decisions and faster event resolution. With the free Vertiv Power Insight software, you can consolidate your view of up to 100 distributed UPS units providing simple notification of status and events in a single pane of glass. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with matching external battery cabinets to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive gravity sensing full-color LCD display.

More from the Manufacturer

Availability: Call or email

$8,041.19
$8,041.19

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Vertiv Liebert GXT5 UPS - 8kVA/8kW/208 and 120V | Online Rack Tower Energy Star - Double Conversion| 6U| Built-in RDU101 Card| Color/Graphic LCD| 3-Year Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 8000 VA
  • Package Contents :
    • GXT5 8000VA 208/120V UPS
    • 4 Post Fixed Rail Kit
    • Tower Stand
    • USB Cable
    • Quick Start Guide
    • Safety Instruction Manual
  • Environmental Sensors : Humidity Sensor
  • Environmental Sensors : Temperature Sensor
  • Environmental Sensors : Leak Detection Sensor
  • Serial Port : Yes
  • Status Indicators :

    LED/Full Color Graphic LCD:

    • Alarm / Fault Indication
  • Load Capacity (Watt) : 8000 W
  • Height : 10.2"
  • Maximum Operating Elevation : 9842.52 ft
  • USB : Yes
  • Plug/Connector Type : Terminal Block
  • Width : 16.9"
  • Energy Star : Yes
  • Network (RJ-45) : Yes
  • Battery Characteristics : Valve-regulated, Non-spillable, Flame-retardant
  • Receptacle Type : Hardwired
  • Input Voltage : 208 V AC
  • Depth : 25.6"
  • Country of Origin : NA
  • Storage Temperature : 5°F (-15°C) - 104°F (40°C)
  • Battery Chemistry : Lead Acid
  • TAA Compliant : No
  • Rack Height : 6U
  • Output Voltage : 120 V AC
  • Output Voltage : 208 V AC
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 224.80 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 6.50 Minute
  • Backup/Run Time (Half Load) : 17 Minute
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Number of External Battery Cabinets : 1
  • Backup/Run Time With External Battery Cabinet (Full Load) : 17.50 Minute
  • Transfer Time : 0 ns
  • Backup/Run Time With External Battery Cabinet (Half Load) : 45 Minute
  • User Selectable Output : 208/120VAC
  • Phase : Single Phase
  • Utility (AC) Mode Overload :
    • 105% to 125% for 5 minutes
    • 125% to 150% for 60 seconds
    • >150% (impact load) minimum 200 ms
  • Hot Swappable : Yes
  • Replaceable Battery : Yes
  • Application/Usage : Data Center
  • Application/Usage : Mission Critical Equipment
  • Application/Usage : IT System
  • Additional Info

    Additional Info

    SKU 04478GXT58000MVRT6UXLN-BF
    Weight 224.8000
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number GXT5-8000MVRT6UXLN
    Width 16.9"
    Length 1
    Height 10.2"
    Product ID 04478GXT58000MVRT6UXLN
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
