Vertiv Liebert GXT5 UPS 3kVA 208V L6-30P| Online Double Conversion Rack Mount/Tower | Energy Star Certified| Lead Acid| 1.0 PF (GXT5-3KL630RT2UXL) - Double Conversion | 2U | Single-Phase | Optional RDU101 Card NIC | Network Communications Card | Color Gra

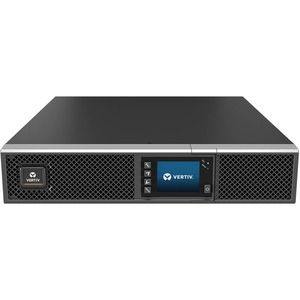

The Vertiv Liebert GXT5-3KL630RT2UXL uninterruptible power supply (UPS) protects critical equipment against outages and power disturbances. This single-phase, 3kVA online double conversion UPS comes with an L6-30P Input Cord. It offers continuous power conditioning in centralized and edge locations. With a high power factor (0.9-1.0), it allows more connected loads, saving space and costs. This compact rack mount/tower UPS has an optional Vertiv RDU101 communications card for remote monitoring and control to help enable faster event resolution. With the free Vertiv Power Insight software, monitor up to 100 distributed UPS units and receive simple notifications of their status and events in one place. This UPS has scalable runtime options with matching external battery cabinets for extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with an intuitive, gravity-sensing, full-color LCD screen.

More from the Manufacturer

Availability: Call or email

$3,439.58
$3,439.58

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Vertiv Liebert GXT5 UPS 3kVA 208V L6-30P| Online Double Conversion Rack Mount/Tower | Energy Star Certified| Lead Acid| 1.0 PF (GXT5-3KL630RT2UXL) - Double Conversion | 2U | Single-Phase | Optional RDU101 Card NIC | Network Communications Card | Color Graphic LCD | 3-Year Warranty

OVERVIEW:

  • Limited Warranty : 3 Year
  • Load Capacity (VA) : 3000 VA
  • Package Contents :
    • GXT5 3kVA 208V UPS
    • 4 Post Fixed Rail Kit
    • Tower Stand
    • USB Cable
    • Quick Start Guide
    • Safety Instruction Manual
  • Environmental Sensors : Humidity Sensor
  • Environmental Sensors : Temperature Sensor
  • Environmental Sensors : Leak Detection Sensor
  • Serial Port : Yes
  • Status Indicators :

    Full Color Graphic LCD / Diagnostic LEDs:

    • Alarm
    • Fault Indication
  • Additional Warranty Information : Opt. 2 year extension
  • Load Capacity (Watt) : 3000 W
  • Height : 3.3"
  • USB : Yes
  • Plug/Connector Type : NEMA L6-30P
  • Width : 16.9"
  • Energy Star : Yes
  • Network (RJ-45) : Yes
  • Battery Characteristics : Valve-regulated, Non-spillable
  • Receptacle Type : NEMA L6-15R
  • Receptacle Type : NEMA L6-30R
  • Input Voltage : 208 V AC
  • Depth : 21.3"
  • Country of Origin : NA
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 2 x NEMA L6-15R
  • Receptacle Detail : 2 x NEMA L6-30R
  • TAA Compliant : No
  • Rack Height : 2U
  • Output Voltage : 240 V AC
  • Output Voltage : 230 V AC
  • Output Voltage : 220 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 200 V AC
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Input Frequency : 50 Hz
  • Weight (Approximate) : 65.10 lb
  • Backup/Run Time (Full Load) : 3 Minute
  • Backup/Run Time (Half Load) : 9 Minute
  • Waveform Type : Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Number of External Battery Cabinets : 1
  • Cord Length : 10 ft
  • Backup/Run Time With External Battery Cabinet (Full Load) : 17 Minute
  • Transfer Time : 0 ns
  • Backup/Run Time With External Battery Cabinet (Half Load) : 43.50 Minute
  • Phase : Single Phase
  • Utility (AC) Mode Overload :
    • >200% for 250ms
    • 150-200% for 2 seconds
    • 125-150% for 10 seconds
    • 105-125% for 15 seconds
  • Hot Swappable : Yes
  • Application/Usage : Data Center
  • Application/Usage : Mission Critical Equipment
  • Additional Info

    Additional Info

    SKU 04478GXT53KL630RT2UXL-BF
    Weight 65.1000
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number GXT5-3KL630RT2UXL
    Width 16.9"
    Length 1
    Height 3.3"
    Product ID 04478GXT53KL630RT2UXL
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
