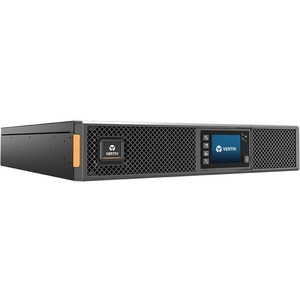

Vertiv Liebert GXT5 UPS - 3000VA/3000W 230V | Online Rack Tower Energy Star - Double Conversion| 2U| Optional RDU101 Card| Color/Graphic LCD| 3-Year Warranty

The Vertiv Liebert GXT5 UPS 3000VA/3000W, is a 2U UPS solution for ensuring the health and availability of IT infrastructure. With online, double conversion technology, the UPS protects critical equipment against outages and every type of power disturbance without drawing on battery power, extending battery life and minimizing replacements. This can support a wide range of power environment including 200/208/220/230/240V user configurable AC power and has scalable runtime options with matching external battery cabinets to offer extra time during an outage to support critical equipment and activity. It includes hot-swappable batteries and all hardware for installing it as a tower or in an equipment rack. This single-phase UPS is ENERGY STAR® 2.0 certified and offers leading normal mode power efficiency and Eco-mode for ultimate efficiency levels. It has a three-year factory warranty. It offers premium power protection for critical infrastructure in centralized and edge applications.

Description

Details

OVERVIEW:

Limited Warranty : 3 Year

Load Capacity (VA) : 3000 VA

Product Color : Black

Package Contents :

UPS
4 Post Fixed Rail Kit and Tower Stand
USB Cable
Quick Start Guide
Safety Instruction Manual

Network Management : SNMP/HTTP Remote Monitoring

Serial Port : Yes

Status Indicators : Colored Graphic LCD Display:

UPS status
UPS configuration

DC System Voltage : 72 V DC

Load Capacity (Watt) : 3000 W

Height : 3.3"

Software Included : Free Download - Power Insight 2.2

Maximum Operating Elevation : 9842.52 ft

Number of Batteries : 6

Width : 16.9"

Energy Star : Yes

Network (RJ-45) : Yes

Battery Characteristics : Valve-regulated, Non-spillable

Receptacle Type : IEC 60320 C13

Receptacle Type : IEC 60320 C19

Input Voltage : 230 V AC

Depth : 21.3"

Country of Origin : NA

Storage Temperature : 5°F (-15°C) - 104°F (40°C)

Battery Chemistry : Lead Acid

Receptacle Detail : 6 x IEC 60320 C13

Receptacle Detail : 1 x IEC 60320 C19

Input Voltage Range : 115 V AC - 288 V AC

TAA Compliant : No

USB (HID Compliant) Port : Yes

Battery Size : 12V

Rack Height : 2U

Battery Capacity : 9000 mAh

Output Voltage : 240 V AC

Output Voltage : 230 V AC

Output Voltage : 220 V AC

Output Voltage : 208 V AC

Output Voltage : 200 V AC

Form Factor : Rack/Tower

Environmentally Friendly : Yes

Input Frequency : 70 Hz

Weight (Approximate) : 62.83 lb

Maximum Operating Temperature : 104°F (40°C)

Backup/Run Time (Full Load) : 3.30 Minute

Sound Emission : 48 dB

Backup/Run Time (Half Load) : 10.80 Minute

Waveform Type : Pure Sine Wave

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Cord Length : 10 ft

Transfer Time : 0 ns

Circuit Breaker : Yes

EMI/RFI Noise Filter : Yes

Battery Life : 5 Year

Phase : Single Phase

Hot Swappable : Yes

Typical Battery Recharge Time : 3 Hour

Replaceable Battery : Yes

Application/Usage : VoIP

Application/Usage : Large Network Peripheral

Application/Usage : Network Closet

Application/Usage : Server

Application/Usage : Network Workstation

Application/Usage : Edge Computing

Application/Usage : Mission Critical Equipment

Additional Info

SKU	04478GXT53000IRT2UXL-BF
Weight	62.8300
Is Featured	N/A
Manufacturer	Vertiv
Manufacturer Part Number	GXT5-3000IRT2UXL
Width	16.9"
Length	1
Height	3.3"
Product ID	04478GXT53000IRT2UXL
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
