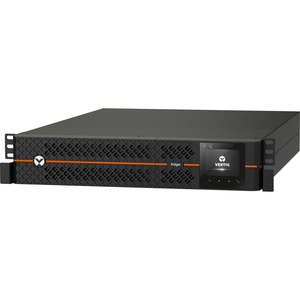

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount - Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty

The Vertiv Edge uninterruptible power supply (UPS) is designed to protect server and networking equipment in distributed and Edge IT applications. With 2U convertible rack/tower format, this 2200VA UPS offers reliable protection from downtime and damage caused by power spikes, swells and brownouts. Automatic Voltage Regulation (AVR) extends battery life and safeguards critical equipment. With sine wave output, this line interactive UPS ensures availability of network closets and Edge data centers. It operates at up to 98% efficiency in normal operation mode, providing energy savings. Add optional Vertiv Intellislot SNMP/Webcards for remote power management and OS's shutdown with free Vertiv Power Assist software. The Edge family has a wide range of power ratings, from 500VA up to 3000VA and form factors, such as mini-tower, 1U rack and rack/tower. It is easy to install, configure and operate and comes with an intuitive, color LCD screen. It has a standard 3-year Vertiv UPS warranty.

More from the Manufacturer

Availability: Call or email

$1,944.00
$1,944.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Vertiv Edge UPS 2200VA 1980W 230V 2U Line Interactive AVR Tower/Rack Mount - Rotatable LCD Monitor | Sine Wave Output on Battery | 3 Programmable Outlets | Vertiv Intellislot SNMP/Webcards available for remote power management | 3-year Warranty

OVERVIEW:

  • Load Capacity (VA) : 2200 VA
  • Product Color : Black
  • Status Indicators : Color and graphic LCD
  • DC System Voltage : 72 V DC
  • Load Capacity (Watt) : 1980 W
  • Height : 3.5"
  • USB : Yes
  • Number of Batteries : 6
  • Width : 17.2"
  • Energy Star : No
  • Alarm : Yes
  • Battery Characteristics : Valve-regulated, Non-spillable
  • Receptacle Type : IEC 60320 C19
  • Receptacle Type : IEC 60320 C13
  • Input Voltage : 278 V
  • Depth : 24.8"
  • Storage Temperature : -13°F (-25°C) - 131°F (55°C)
  • Battery Chemistry : Lead Acid
  • Receptacle Detail : 1 x IEC 60320 C19
  • Receptacle Detail : 6 x IEC 60320 C13
  • Input Voltage Range : 144 V AC - 290 V AC
  • TAA Compliant : No
  • USB (HID Compliant) Port : Yes
  • Battery Size : 12V
  • Rack Height : 2U
  • Battery Capacity : 7000 mAh
  • Output Voltage : 240 V AC
  • Output Voltage : 230 V AC
  • Output Voltage : 220 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 200 V AC
  • Form Factor : Rack/Tower
  • Input Frequency : 65 Hz
  • Weight (Approximate) : 59.52 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 4.40 Minute
  • Sound Emission : 45 dB
  • Backup/Run Time (Half Load) : 14 Minute
  • Waveform Type : Pure Sine Wave
  • Transfer Time : 6 ms
  • Circuit Breaker : Yes
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 3 Hour
  • Additional Info

    Additional Info

    SKU 04478EDGE2200IRT2UXL-BF
    Weight 59.5200
    Is Featured N/A
    Manufacturer Vertiv
    Manufacturer Part Number EDGE-2200IRT2UXL
    Width 17.2"
    Length 1
    Height 3.5"
    Product ID 04478EDGE2200IRT2UXL
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
