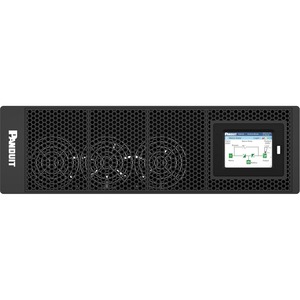

Panduit SmartZone U05N11V 5000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R Receptacle(s)

The Panduit® SmartZone™ UPS with maintenance free VRLA battery, 5-10kVA single phase 208 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT Infrastructure.

Availability: Call or email

$7,291.83

Qty:

Description

Details

Panduit SmartZone U05N11V 5000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC, 230 V AC Input - 208 V AC, 240 V AC Output - Single Phase - Serial Port - 4 x NEMA L6-30R Receptacle(s)

OVERVIEW:

Limited Warranty : 3 Year

AVR : Yes

Load Capacity (VA) : 5000 VA

Product Color : Black

Package Contents :

SmartZone U05N11V 5000VA Rack/Tower UPS
Intelligent Network Management Card

Serial Port : Yes

Status Indicators : Colorful LCD with four buttons and LED indicators

DC System Voltage : 240 V DC

Additional Warranty Information :

3 Years for UPS & EBP
2 Years for Battery

Load Capacity (Watt) : 5000 W

Height : 5.2"

Software Included : SmartZone Cloud Ready

Maximum Operating Elevation : 9842.52 ft

Number of Batteries : 20

Plug/Connector Type : NEMA L6-30R

Width : 17.3"

Energy Star : Yes

Alarm : Yes

Network (RJ-45) : Yes

Battery Characteristics : Valve-regulated, Maintenance-free, Hot-swappable

Receptacle Type : NEMA L6-30R

Input Voltage : 230 V AC

Input Voltage : 120 V AC

Depth : 26.2"

Storage Temperature : -13°F (-25°C) - 131°F (55°C)

EPO Port : Yes

Battery Chemistry : Sealed Lead Acid (VRLA)

Receptacle Detail : 4 x NEMA L6-30R

Input Voltage Range : 110 V AC - 285 V AC

Input Voltage Range : 185 V AC - 264 V AC

USB (HID Compliant) Port : Yes

Battery Size : 12V

Rack Height : 2U

Battery Capacity : 9000 mAh

Output Voltage : 240 V AC

Output Voltage : 208 V AC

Form Factor : Rail Mountable

Form Factor : Rack/Tower

Environmentally Friendly : Yes

Input Frequency : 70 Hz

Weight (Approximate) : 187.39 lb

Maximum Operating Temperature : 104°F (40°C)

Output Frequency : 60 Hz

Energy Efficiency Certification : ENERGY STAR 2.0

Sound Emission : 55 dB

Dataline Protection : RJ-45

Overload Protection : Yes

Waveform Type : Pure Sine Wave

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Thermal Dissipation : 312.71 W

Surge Energy Rating : 600 J

Backup/Run Time With External Battery Cabinet (Full Load) : 14.50 Minute

Transfer Time : 0 ns

Backup/Run Time With External Battery Cabinet (Half Load) : 37.10 Minute

Battery Life : 5 Year

Phase : Single Phase

Hot Swappable : Yes

Typical Battery Recharge Time : 6 Hour

Replaceable Battery : Yes

Application/Usage : Edge Computing

Application/Usage : Computer

Application/Usage : IT Equipment

Application/Usage : Data Center

Additional Info

SKU	02771U05N11V-BF
Weight	187.3900
Is Featured	N/A
Manufacturer	PANDUIT CORP
Manufacturer Part Number	U05N11V
Width	17.3"
Length	1
Height	5.2"
Product ID	02771U05N11V
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A
