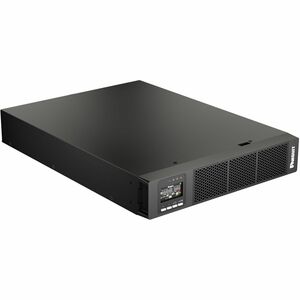

This pure sine wave Double Conversion 1-3 KVA UPS delivers highly efficient and reliable power protection and backup for your computer IT equipment. The UPS features a maintenance-free VRLA battery and is a 1-3kVA single-phase 120/230 volt unit. The pure Online Double Conversion system provides constant excellent electrical performance and comes standard with enhanced intelligent monitoring and network functions. The unit complies with ENERGY STAR® 2.0, EMC, and safety standards to meet the continually growing power demands of Data Center, Enterprise, and Edge IT Infrastructure.
Key Features and Benefits | Rack/Tower convertible
Support rack/tower installation with rotatable colorful LCD display.
Online Double Conversion with fully digital control (EMEA unit only)
Provides stable and clean power with less ripple by filtering noise, automatic voltage regulation (AVR) and surge protection
Wide input voltage range
110-300 VAC for EU units and 55-150 VAC for North America units, covering extended voltage range, applicable for severe situation such as large power grid fluctuation
High efficiency
Up to 96.5%, reducing the energy waste and the cost of electricity
Energy savings
High Efficiency on Smart ECO mode for Online Double Conversion models
Green design
RoHS and Reach, CE/UL/ENERGY STAR® 2.0 compliant for North America units
Output unity power factor
Means more active power for IT equipment load
Input power factor
Power factor correction topology on the input side dramatically reducing the total harmonic distortion (THD)
Expandable battery packs:
Allows to connect maximum four external battery packs, extending the UPS backup running time
Intelligent Battery Management:
The most optimal curve and temperature-compensated with advanced algorithms prolonging the battery life
EPO function (Emergency Power Off)
Allows to quickly and easy shut down the UPS when emergency event occurs
Generator compatible
Wide input frequency and voltage, supports connecting to generators, ensuring the uninterruptible operation
Hot-Swappable battery design
Can perform the replacement of battery cartridge without powering down the UPS
Cold start function
Allows to boot up the UPS without mains input but with batteries
Intelligent fan speed regulation
Automatically adjustment of fan speed due to the ambient temperature and load percentage
Programmable outlet group with Smart Load Shedding
Loads connected to the programmable group can lose power first, saving more energy and extending the runtime for critical load. Smart Load Shed allows logical group shutdown with time or load.
Segment colorful LCD
Colorful LCD with four buttons and LED indicators, providing intuitive display
Multiple communication interface
RS232/USB/intelligent slot, realizing communication and monitoring function
Comprehensive protection function
Short-circuit, overload, overheat, battery overcharge and over discharge, output low voltage, fan fault alarm and RJ45 surge protection
