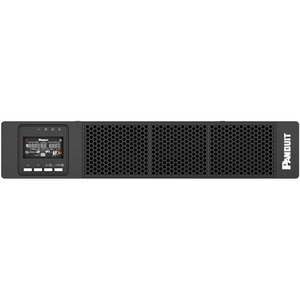

Panduit SmartZone U02S11L 1500VA Rack/Tower UPS - 2U Rack/Tower, Compact, Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

The Panduit ® SmartZone™ Intelligent Rack UPS with compact, high capacity, and long life Lithium Ion battery, 1-3kVA single phase 120 V Line-Interactive unit and 230 V unit with pure Online Double Conversion system that delivers highly efficient and reliable power protection and backup power for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions and complying with EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.

Availability: Call or email

$2,208.00
$2,208.00

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Panduit SmartZone U02S11L 1500VA Rack/Tower UPS - 2U Rack/Tower, Compact, Rail Mountable - AVR - 4 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 115 V AC, 120 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

OVERVIEW:

  • Limited Warranty : 5 Year
  • AVR : Yes
  • Load Capacity (VA) : 1500 VA
  • Product Color : Black
  • Serial Port : Yes
  • Status Indicators : Colorful LCD with four buttons and LED indicators
  • DC System Voltage : 48 V DC
  • Additional Warranty Information : 5 Years (UPS & Battery)
  • Load Capacity (Watt) : 1350 W
  • Height : 3.4"
  • Maximum Operating Elevation : 9842.52 ft
  • Plug/Connector Type : NEMA 5-15P
  • Width : 17.3"
  • Energy Star : Yes
  • Alarm : Yes
  • Network (RJ-45) : Yes
  • Receptacle Type : NEMA 5-15R
  • Input Voltage : 120 V AC
  • Depth : 18.1"
  • Storage Temperature : -13°F (-25°C) - 131°F (55°C)
  • EPO Port : Yes
  • Battery Chemistry : Lithium-Ion (LiFePO4)
  • Receptacle Detail : 6 x NEMA 5-15R
  • Input Voltage Range : 75 V AC - 146 V AC
  • USB (HID Compliant) Port : Yes
  • Rack Height : 2U
  • Output Voltage : 125 V AC
  • Output Voltage : 120 V AC
  • Output Voltage : 115 V AC
  • Output Voltage : 110 V AC
  • Output Voltage : 100 V AC
  • Form Factor : Rail Mountable
  • Form Factor : Compact
  • Form Factor : Rack/Tower
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 37.70 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Output Frequency : 60 Hz
  • Energy Efficiency Certification : ENERGY STAR 2.0
  • Sound Emission : 55 dB
  • Dataline Protection : RJ-45
  • Overload Protection : Yes
  • Waveform Type : Pure Sine Wave
  • Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Thermal Dissipation : 41.62 W
  • Backup/Run Time With External Battery Cabinet (Full Load) : 7.50 Minute
  • Transfer Time : 6 ms
  • Backup/Run Time With External Battery Cabinet (Half Load) : 19 Minute
  • Battery Life : 10 Year
  • Phase : Single Phase
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 4 Hour
  • Replaceable Battery : Yes
  • Application/Usage : Edge Computing
  • Application/Usage : Computer
  • Application/Usage : Enterprise
  • Application/Usage : IT Equipment
  • Application/Usage : Data Center
  • Additional Info

    Additional Info

    SKU 02771U02S11L-BF
    Weight 37.7000
    Is Featured N/A
    Manufacturer PANDUIT CORP
    Manufacturer Part Number U02S11L
    Width 17.3"
    Length 1
    Height 3.4"
    Product ID 02771U02S11L
    UNSPSC N/A
    Other Part Number N/A
    Special Price N/A
