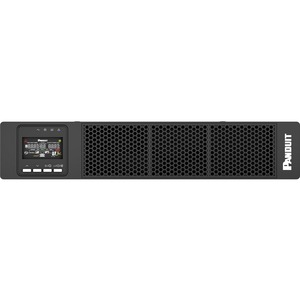

Panduit SmartZone U01N13V 1000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

The Panduit ® SmartZone™ UPS with maintenance free VRLA battery, 1-3kVA single phase 120 V and 230 V units is a pure Online Double Conversion system that delivers highly efficient and reliable power protection and power backup for your computer IT equipment. With excellent electrical performance, enhanced intelligent monitoring and network functions, complying with ENERGY STAR ® 2.0, EMC and safety standards to meet the continually growing power demands of Data Center, Enterprise and Edge IT equipment.

Availability: Call or email

Regular Price: $1,571.04

Special Price $1,476.78

Regular Price: $1,571.04

Special Price $1,476.78

Qty:

Description

Details

Panduit SmartZone U01N13V 1000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)

OVERVIEW:

Limited Warranty : 5 Year

AVR : Yes

Load Capacity (VA) : 1000 VA

Product Color : Black

Package Contents :

SmartZone U01N13V 1000VA Rack/Tower UPS
Intelligent Network Management Card

Serial Port : Yes

Status Indicators : Colorful LCD with four buttons and LED indicators

DC System Voltage : 24 V DC

Additional Warranty Information :

3 Years for UPS
2 Years for Internal Battery and EBP

Load Capacity (Watt) : 1000 W

Height : 3.4"

Software Included : SmartZone Cloud Ready

Maximum Operating Elevation : 9842.52 ft

Number of Batteries : 2

Plug/Connector Type : NEMA 5-15P

Width : 17.3"

Energy Star : Yes

Alarm : Yes

Network (RJ-45) : Yes

Receptacle Type : NEMA 5-15R

Input Voltage : 120 V AC

Depth : 12.8"

Storage Temperature : -13°F (-25°C) - 131°F (55°C)

EPO Port : Yes

Battery Chemistry : Sealed Lead Acid (VRLA)

Receptacle Detail : 6 x NEMA 5-15R

Input Voltage Range : 100 V AC - 125 V AC

Input Voltage Range : 55 V AC - 150 V AC

USB (HID Compliant) Port : Yes

Battery Size : 12V

Rack Height : 2U

Battery Capacity : 9000 mAh

Output Voltage : 125 V AC

Output Voltage : 115 V AC

Output Voltage : 120 V AC

Output Voltage : 110 V AC

Output Voltage : 100 V AC

Form Factor : Rail Mountable

Form Factor : Rack/Tower

Environmentally Friendly : Yes

Input Frequency : 70 Hz

Weight (Approximate) : 27.34 lb

Maximum Operating Temperature : 104°F (40°C)

Output Frequency : 60 Hz

Energy Efficiency Certification : ENERGY STAR 2.0

Sound Emission : 55 dB

Dataline Protection : RJ-45

Overload Protection : Yes

Waveform Type : Pure Sine Wave

Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)

Environmental Compliance : Restriction of Hazardous Substances (RoHS)

Thermal Dissipation : 117.23 W

Backup/Run Time With External Battery Cabinet (Full Load) : 2.70 Minute

Transfer Time : 0 ns

Backup/Run Time With External Battery Cabinet (Half Load) : 10.90 Minute

Battery Life : 5 Year

Phase : Single Phase

Hot Swappable : Yes

Typical Battery Recharge Time : 6 Hour

Replaceable Battery : Yes

Application/Usage : Edge Computing

Application/Usage : Computer

Application/Usage : Enterprise

Application/Usage : IT Equipment

Application/Usage : Data Center

Additional Info

SKU	02771U01N13V-BF
Weight	27.3400
Is Featured	N/A
Manufacturer	PANDUIT CORP
Manufacturer Part Number	U01N13V
Width	17.3"
Length	1
Height	3.4"
Product ID	02771U01N13V
UNSPSC	N/A
Other Part Number	N/A
Special Price	N/A

Panduit SmartZone U01N13V 1000VA Rack/Tower UPS - 2U Rack/Tower, Rail Mountable - AVR - 6 Hour Recharge - 120 V AC Input - 100 V AC, 110 V AC, 120 V AC, 115 V AC, 125 V AC Output - Single Phase - Serial Port - 6 x NEMA 5-15R Receptacle(s)
