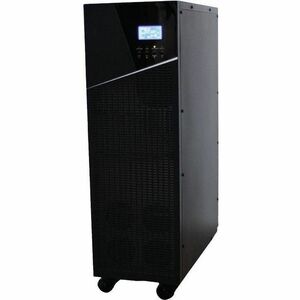

Minuteman Endeavor ED6KTF 6000VA Tower UPS - 5 Minute Stand-by - 120 V AC, 230 V AC Input - 240 V AC, 208 V AC, 230 V AC, 120 V AC Output - Single Phase - True Sine Wave - LCD Display

True On-line UPS Provides Maximum Protection | Endeavor® 6/10kVA Uninterruptible Power Supply

The Minuteman® Endeavor® 6/10kVA Tower Series UPS combines transient free, pure sine wave output and extended runtime capability for critical applications. A front panel LCD display provides visual notification of the UPS status, including AC input status, battery status, and UPS fault indication.

Ultra-Configurable Value for Large Systems

The Endeavor Series is available in two models with configuration options and multiple voltage configurations to ensure a proper solution is available for most applications. Both Endeavor models include 208-240V input and 120/208/230/240VAC output. Additional accessories, including an SNMP communication card and one or more external battery packs would further tailor the Endeavor to individual's needs.

A perfectly regulated, continuous sine wave output with zero transfer time offers guaranteed uptime and compatibility with all equipment types.

Availability: Call or email

$3,339.35
$3,339.35
Para Systems, Inc

Fast shipping on all in-stock products

Quick turnaround on RFQs - email us today.

Buy from a certified veteran-owned small business (VOSB)

Questions? Call customer service at 503-208-8410.

Description

Details

Minuteman Endeavor ED6KTF 6000VA Tower UPS - 5 Minute Stand-by - 120 V AC, 230 V AC Input - 240 V AC, 208 V AC, 230 V AC, 120 V AC Output - Single Phase - True Sine Wave - LCD Display

OVERVIEW:

  • Limited Warranty : 2 Year
  • Load Capacity (VA) : 6000 VA
  • Product Color : Black
  • Display : LCD
  • Status Indicators :

    LCD Display:

    • AC Input Status
    • Battery Status
    • UPS Fault Indication
  • Load Capacity (Watt) : 6000 W
  • Height : 32.5"
  • Number of Batteries : 20
  • Plug/Connector Type : Hardwired
  • Width : 9.8"
  • Battery Characteristics : Sealed, Non-spillable, Maintenance-free, Valve-regulated
  • Receptacle Type : Hardwired
  • Input Voltage : 230 V AC
  • Input Voltage : 120 V AC
  • Storage Temperature : 5°F (-15°C) - 140°F (60°C)
  • Battery Chemistry : Lead Acid
  • Input Voltage Range : 110 V AC - 300 V AC
  • Input Voltage Range : 0 V AC - 300 V AC
  • Input Voltage Range : 208 V AC - 240 V AC
  • Length : 22.1"
  • Output Voltage : 120 V AC
  • Output Voltage : 230 V AC
  • Output Voltage : 208 V AC
  • Output Voltage : 240 V AC
  • Environmentally Friendly : Yes
  • Input Frequency : 60 Hz
  • Weight (Approximate) : 237 lb
  • Maximum Operating Temperature : 104°F (40°C)
  • Backup/Run Time (Full Load) : 5 Minute
  • Output Frequency : 60 Hz
  • Backup/Run Time (Half Load) : 14 Minute
  • Waveform Type : True Sine Wave
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS) 2
  • Surge Energy Rating : 880 J
  • Phase : Single Phase
  • Application/Usage : Mission Critical Equipment
  • Application/Usage : VoIP
  • Application/Usage : Telephone
  • Application/Usage : Distributed Antenna System (DAS)
  • Application/Usage : Network
  • Application/Usage : Education
  • Application/Usage : High-end System
  • Application/Usage : Security System
  • Application/Usage : Network Closet
  • Application/Usage : Data Center
